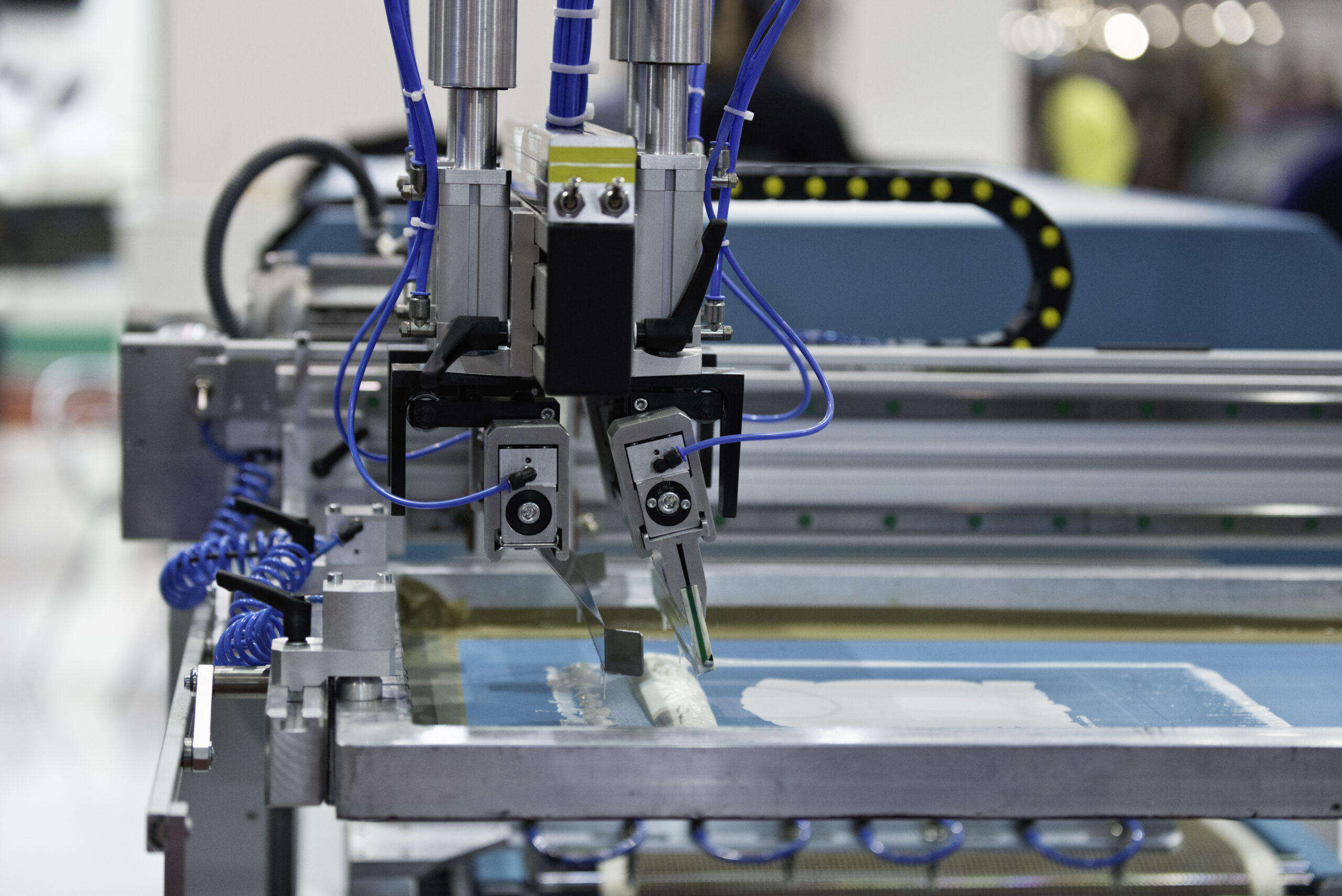

A digital fabric printer is a powerful production asset, but when issues arise, it can quickly become a source of frustration, waste, and costly downtime. For print shop owners, technicians, and operators, a prolonged technical problem can severely impact finances and client trust. A single production run ruined by incorrect colors or a misaligned print can wipe out a day’s profit.

Common fabric printer troubleshooting issues include fabric jams from misaligned rollers, ink bleeding due to incorrect heat settings, blurry images from low-resolution files, and incorrect colors from misconfigured ICC profiles. Regular maintenance and correct settings are key to prevention.

According to FESPA, a leading federation of printing associations, a staggering 63% of all digital fabric printing errors stem from a lack of regular, proactive maintenance. By learning to identify and resolve common issues, you can save invaluable time, reduce material waste, and maintain the high-quality output your customers expect. This guide provides a step-by-step approach to troubleshooting the 10 most common fabric printer troubleshooting.

1. Fabric Jams and Misfeeds

A fabric jam is one of the most frequent and disruptive issues, capable of halting production and even damaging delicate print heads or the fabric itself.

• Common Causes:
  • The fabric roll is loaded unevenly or has wrinkles/creases.
  • The take-up and feeding rollers are worn down and have lost their grip.
  • The media sensors are obstructed by dust, lint, or ink residue.
  • The fabric edges are frayed or curling.
• How to Fix It:
  1. Immediately pause or cancel the print job from the control panel.
  2. Carefully cut away the jammed section of fabric. Do NOT pull or yank the material, as this can damage the rollers.
  3. Power down the machine and gently clean the media sensors with a lint-free cloth and isopropyl alcohol.
  4. Inspect the rollers for wear and clean them. If they appear smooth or cracked, they need to be replaced.
• Pro Tip: Before loading a new roll, inspect it for wrinkles and ensure it is wound tightly and evenly. Using high-quality, anti-curl fabric can significantly reduce jam frequency.

2. Ink Bleeding or “Smearing”

This occurs when the ink spreads beyond the intended print area, creating fuzzy edges and ruining image sharpness.

• Common Causes:
  • The print head’s temperature is too low for the ink to cure properly upon landing on the fabric.
  • The fabric has too much moisture or was not pre-treated correctly.
  • The ink viscosity is too low (too thin) for the print head’s jetting action.
  • The print head is too far from the fabric surface.
• How to Fix It:
  1. Calibrate the printer’s temperature and speed settings to match the specifications for your specific fabric type.
  2. Ensure your print environment has stable humidity and that the fabric is acclimated before printing.
  3. Only use high-quality inks with a verified ICC profile from your machine’s manufacturer.
  4. Adjust the print head height to be within the recommended range (typically 1-2mm).
• Pro Tip: This issue is common with certain print heads if not maintained. Implement a strict head cleaning schedule, especially for Epson-based systems, every 3-5 days.

3. Blurry, “Pixelated,” or Faded Images

The final print lacks sharpness and appears dull or low-quality. This is almost always a pre-press or maintenance issue.

• Common Causes:
  • The source image file has a low resolution (below 150 DPI).
  • The design file is in the wrong color mode (RGB instead of CMYK for print).
  • The print heads are partially clogged, causing uneven ink distribution.
• How to Fix It:
  1. Ensure all artwork is designed with a minimum resolution of 300 DPI at the final print size.
  2. Convert all design files to the CMYK color profile before sending them to the RIP software.
  3. Run the printer’s automatic print head cleaning cycle. If banding still occurs, perform a manual cleaning with approved swabs and cleaning solution.
  4. Create a maintenance schedule for fabric printer troubleshooting to minimize causes.
• Pro Tip: Always print a small test swatch before committing to a large production run to verify image quality and color.

4. “Ghosting” or 3D Shadowing

A faint, shadow-like duplicate of the image appears slightly offset from the main print, making it look blurry. fabric printer troubleshooting

• Common Causes:
  • During sublimation, the transfer paper shifts slightly when the heat press is opened or closed.
  • The printer or heat press is on an unstable surface, causing vibrations.
  • The design file has an accidental duplicate layer or was exported incorrectly.
• How to Fix It:
  1. Use high-tack thermal tape to securely fasten the sublimation paper to the direct to fabric before pressing.
  2. Ensure both the printer and heat press are on a heavy, level, and stable surface.
  3. Double-check your artwork files for extra layers and export them in a flat format like TIFF or high-resolution PNG.

5. Incorrect or Inconsistent Colors

You send a file with deep red, but the print comes out as light orange. This is one of the most frustrating fabric printer troubleshooting challenges.

• Common Causes:
  • The ICC color profile in your RIP software is incorrect for the specific combination of printer, ink, and fabric you are using.
  • The ink is from a different batch or a third-party supplier, causing a color shift.
  • The print heads have clogged nozzles, preventing one or more colors from printing correctly.
• How to Fix It:
  1. Install and select the correct ICC profile provided by your printer or ink manufacturer.
  2. Perform a nozzle check to ensure all colors are firing perfectly. Clean the print heads if necessary.
  3. Always use ink from a single, reliable supplier to maintain consistency.
• Pro Tip: Top-tier printer brands like Roland and Mimaki provide extensive libraries of certified color profiles. Using them is the fastest way to achieve accurate color.

6. “Threshing” or Ink Dusting

Tiny, unwanted dots or specks of ink appear randomly across the printed fabric, ruining its aesthetic appeal.

• Common Causes:
  • The heat press temperature is too high, causing the ink to vaporize unevenly.
  • The pressing time is too long.
  • The fabric quality is poor or has not been properly treated to handle high heat.
• How to Fix by Fabric Printer Troubleshooting:
  1. Lower the heat press temperature to the recommended level for your fabric (e.g., 170-180°C for cotton blends).
  2. Reduce the pressing time, especially for sublimation (often under 40 seconds).
  3. Use high-quality fabric from a reputable supplier.

7. Ink Peeling or “Crocking”

The ink doesn’t adhere properly to the fabric and can be scratched off or fade dramatically after the first wash.

• Common Causes:
  • The print head is positioned too high above the fabric surface.
  • Static electricity in the print room is repelling ink droplets.
  • The printer is not properly grounded.
• How to Fix It:
  1. Calibrate the print head height to be within the manufacturer’s specified range (1-2mm).
  2. Check the grounding of the printer and the entire electrical circuit it’s on.
  3. Maintain stable humidity in the print room and consider using an anti-static ionizer near the print carriage.

8. Mirrored or Reversed Images

The printed design appears as a mirror image of the original file. This is a simple but costly user error.

• Common Cause: The operator forgot to mirror the image in the software before printing, which is a required step for sublimation/transfer printing.
• How to Fix It:
  1. In your design software (Illustrator, Photoshop), always select “Mirror Image” or “Flip Horizontal” before exporting the final print file.
  2. Create a pre-set print profile in your RIP software specifically for transfer printing that automatically mirrors the image.
• Pro Tip: Implement a mandatory pre-print checklist for fabric printer troubleshooting and operators that includes “Verify Image is Mirrored.”

9. Printer Suddenly Stops Mid-Print

The printer halts without an error code, causing significant delays and wasting material.

• Common Causes:
  • Unstable connection from a low-quality USB or LAN cable.
  • The computer connected to the printer went into sleep or power-saving mode.
  • The printer’s internal memory is full of old, cached print jobs.
• How to Fix It:
  1. Use high-quality, shielded USB/LAN cables and ensure the connections are secure.
  2. Disable all sleep and power-saving modes on the computer dedicated to running the printer.
  3. Regularly access the printer’s control panel or print queue and clear all completed or stuck jobs to make sure Fabric Printer Troubleshooting performance.

10. Printer Not Detected or Unresponsive

You send a print job, but the machine does nothing. This is typically a connection or driver issue.

• Common Causes:
  • The USB or network cable is loose or faulty.
  • The printer driver is incorrect, outdated, or corrupted.
  • A firewall or antivirus software is blocking the connection.
• How to Fix It:
  1. Try a different, high-quality cable and a different port on the computer.
  2. Completely uninstall the current driver and download the latest version directly from the manufacturer’s official website.
  3. Temporarily disable security software during driver installation.
• Pro Tip: To archive a high Fabric Printer Troubleshooting effect. Dedicate a separate, stable computer solely for operating the printer to minimize software conflicts.

A Proactive Approach: Setup & Maintenance

According to the Specialty Graphic Imaging Association (SGIA), printers that receive proper, scheduled fabric printer troubleshooting maintenance experience up to 78% fewer minor errors.

• Initial Setup: Install the machine on a level, stable surface with a dedicated, clean power source. Install drivers from the manufacturer, not from the OS default.
• Maintenance Checklist:
  • Daily: Check ink levels, run a nozzle check, and wipe down the exterior.
  • Weekly: Perform a light print head cleaning, clean the capping station, and inspect/clean rollers.
  • Monthly: Perform a deep clean of the interior, check and lubricate moving parts, and update firmware/software.

When to Call for Professional Help For Fabric Printer Troubleshooting

If you’ve tried these fabric printer troubleshooting steps and the issue persists, it’s time to call a professional. Continuing to run a malfunctioning machine can cause more expensive, permanent damage.

If you’re facing persistent issues with your fabric printer or need expert technical support, don’t hesitate to contact VieTextile. Our team of professional engineers provides leading maintenance and repair services to get you back up fabric printer troubleshooting and running quickly.

FAQ

1. Why isn’t my fabric printer detected by the computer? This is most often due to a faulty USB cable or an incorrect/corrupted printer driver. Check the physical connection first, then reinstall the driver from the official manufacturer’s website.

2. What causes a fabric printer to jam repeatedly? Consistent jamming is usually caused by worn-out feed rollers that have lost their grip, a dirty media sensor, or using wrinkled/poorly-wound fabric rolls.

3. Why are my print colors wrong? This is almost always a fabric printer troubleshooting issue with the ICC color profile in your RIP software not matching the specific printer-ink-fabric combination you are using.

4. How do I properly clean a printer’s print heads? Always use the manufacturer’s approved cleaning solution and lint-free swabs. Run the automatic cleaning cycle first. For manual cleaning, apply the solution to the swab and gently wipe the head surface; never apply force.

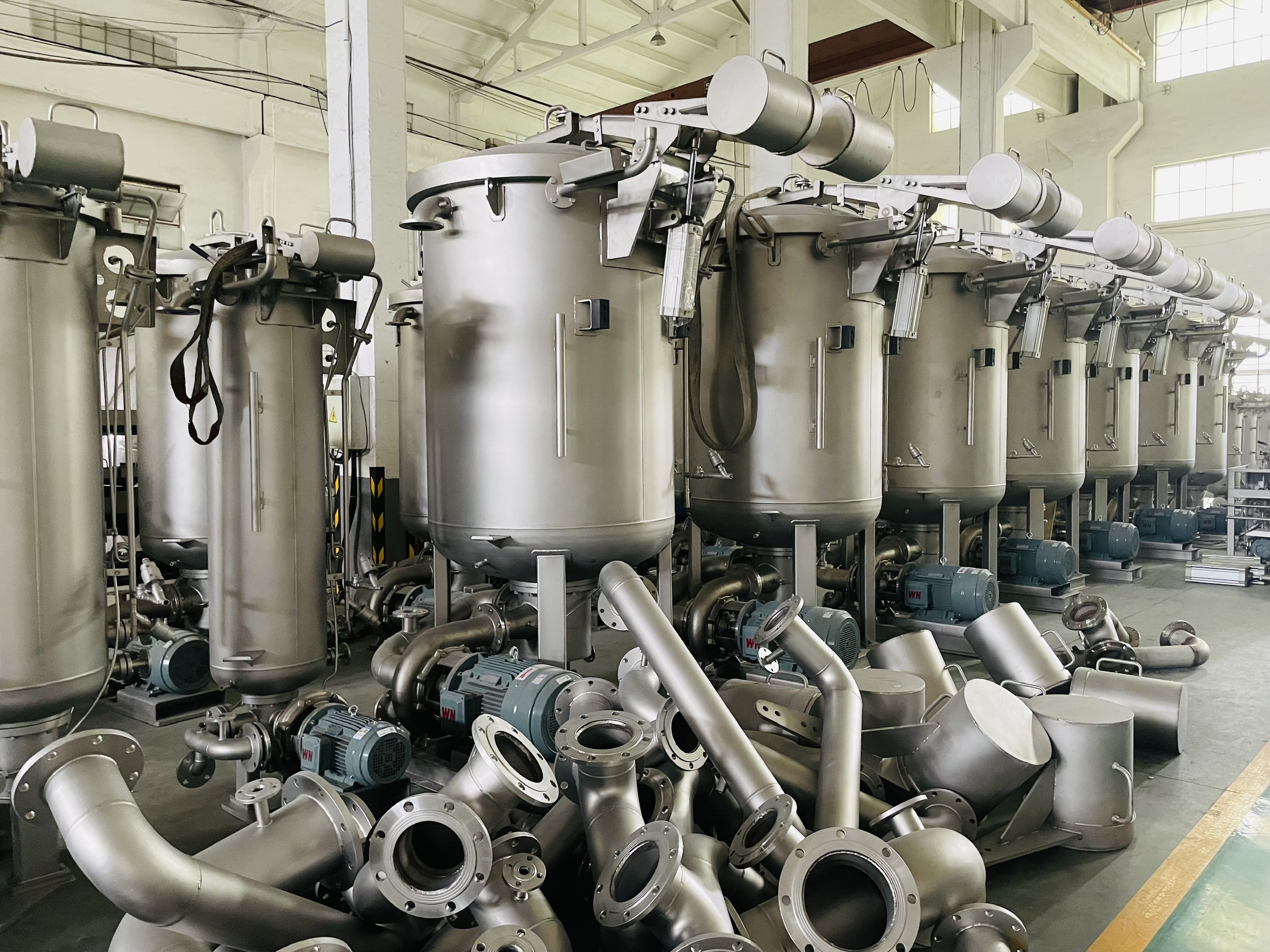

For any textile mill, the dyeing machine is the heart of the value-addition process, transforming raw fabric into a vibrant, finished product. However, it is also a complex piece of equipment operating in a harsh environment of high temperatures, constant pressure, and corrosive chemicals. In this high-stakes setting, a robust dyeing machine maintenance program is not a “cost center”—it is a profit center.

Effective dyeing machine maintenance relies on a multi-stage schedule, from daily operator checks to annual overhauls. This proactive approach prevents common failures, reduces operating costs by over 30%, ensures color consistency, and extends the life of critical industrial dyeing equipment.

1. Why Proactive Maintenance is a Non-Negotiable Strategy

While many small to medium-sized enterprises (SMEs) tend to ignore maintenance until a breakdown occurs, this reactive approach is incredibly costly. According to the European Apparel and Textile Confederation (EURATEX), a staggering 45% of all production downtime in dye houses is due to a lack of a proper maintenance schedule. This guide provides a comprehensive, six-stage checklist and expert solutions to help you establish a world-class dyeing machine maintenance program that will reduce costs, improve quality, and maximize uptime.

Neglecting dyeing machine maintenance leads to a predictable cascade of expensive failures. Common issues like fouled heat exchangers, clogged filters, and worn pump seals don’t just cause downtime; they lead to inconsistent heating and poor circulation, resulting in entire batches of fabric being ruined due to uneven dyeing. A proactive strategy prevents these issues, ensuring your machine runs reliably and efficiently.

2. Maintenance Requirements for Different Dyeing Machines

Every fabric dyeing machine has its own operational profile—defined by its mechanical design, heat tolerance, pressure thresholds, and contact materials. This means dyeing machine maintenance procedures must be customized for each machine type, whether it’s a jet, overflow, beam, or winch dyeing system. Using the wrong cleaning pressure or incompatible chemicals can lead to surface damage, seal wear, or sensor misalignment. A machine-specific, scheduled maintenance plan is critical to ensure smooth operation, prevent costly downtime, and maximize equipment lifespan.

• Jigger Dyeing Machines: Jigger dyeing machine maintenance are commonly used for woven fabrics, particularly woven polyester types like taffeta, peach skin, and satin. Because the fabric is continuously wound across two main rollers, precise tension control is essential. Special attention must be paid to the roller shafts, bearings, and rotational speed regulators, all of which operate under constant mechanical stress. Improper maintenance or misalignment in speed or tension can lead to fabric wrinkling, shade variation, or selvage damage. Therefore, a structured maintenance routine is crucial to ensuring high-quality dyeing and extending machine lifespan.
• Jet Dyeing Machines: Jet dyeing machines are the true workhorses for processing polyester and cotton-knitted fabrics, as well as nylon and polyester woven fabrics. Operating at high velocity with closed-loop dye circulation, these machines depend on high-pressure pumps, medium-range nozzles, airflow speed, and mechanical seals to function effectively. These components are under constant stress, making them the most critical parts for routine dyeing machine maintenance. Neglecting these can lead to dye blotching, uneven shades, or costly production halts. Implementing a dedicated maintenance plan ensures optimal dyeing results and maximizes machine uptime.
• Round-tube dyeing machines are specially designed for cotton dyeing fabrics, cotton towels, and natural fiber textiles. These machines operate under high pressure with large nozzles, allowing deep and uniform dye penetration. Critical components that require regular dyeing machine maintenance include the butterfly valve, main pump motor, wind motor, wind speed calibration system, and speed synchronization module. Neglecting these can result in machine vibration, inconsistent color output, or operational failure. Precise tuning of wind speed and synchronization across all motors is essential for reliable performance and consistent fabric quality.
• Continuous Dyeing Ranges: are engineered for open-width wet finishing processes at high production volumes, often running across multiple shifts without pause. In such demanding conditions, consumable parts like rollers, sensors, control valves, rubber O-rings, and bearings undergo rapid wear. This makes dyeing machine maintenance more critical and frequent compared to batch dyeing systems. Regular inspection and timely replacement of these components are essential to prevent unexpected breakdowns, maintain dyeing consistency, and support uninterrupted production. A proactive maintenance approach directly impacts both fabric quality and operational efficiency.

Whether it’s a Jet, Jigger, Round-tube, or Continuous Dyeing Range, the golden rule of dyeing machine maintenance remains the same: “maintain before failure; not after.” This proactive mindset is the foundation of smart textile operations. Scheduled maintenance prevents unplanned downtime, ensures dyeing consistency, and significantly extends equipment life. By detecting early signs of wear or misalignment, businesses can reduce repair costs and protect order fulfillment schedules; turning maintenance from a cost into a long-term investment.

3. Safety First: Before You Begin Any Maintenance Task

There’s no universal dyeing machine maintenance schedule that fits all factories. Each facility has unique workloads, machine types, and production cycles. However, if you operate a small to medium-sized dyeing plant, you can adopt the following practical maintenance plan, drawn from real-world operations across Vietnam. This recommended schedule helps you stay ahead of unexpected breakdowns, control maintenance costs, and sustain consistent performance across your dyeing operations.

Industrial machinery is inherently hazardous, especially in high-pressure systems like fabric dyeing machines. Before performing any dyeing machine maintenance, safety must be the top priority. Technicians must ensure the power supply is completely shut off, pressure is released, and all standard safety procedures are strictly followed. Even a minor oversight can lead to serious injury, equipment damage, or full production stoppage. Promoting a strong safety culture is essential for any modern textile facility.

• Lockout/Tagout (LOTO): Always perform a full LOTO procedure before beginning any mechanical or electrical work. This involves completely de-energizing the machine from its power source and locking the disconnect switch so it cannot be accidentally turned on. For detailed standards, refer to the official OSHA Lockout/Tagout guidelines.
• Personal Protective Equipment (PPE): is essential for any dyeing machine maintenance task. Technicians must wear heat-resistant gloves, chemical-resistant goggles, and steel-toed safety boots to protect themselves from high temperatures, corrosive chemicals, and mechanical hazards. Dyeing equipment often operates under extreme conditions, and even brief exposure can lead to serious injury. Proper PPE usage not only safeguards individuals but also reflects a strong safety culture within the facility..
• Confined Space Entry: Confined space entry, such as cleaning the interior of a body dye vessel (kier), requires strict adherence to safety protocols. Before entry, technicians must ensure adequate ventilation, conduct gas and oxygen level checks, and have a standby supervisor present at all times. Dyeing vessels can harbor hazardous gases or oxygen-deficient atmospheres, posing life-threatening risks. That’s why confined space safety is a critical part of any professional dyeing machine maintenance training program.

4. The 6-Stage Maintenance Schedule: A Detailed Checklist

This schedule, grounded in best practices from leading dyeing factories, serves as a clear and actionable roadmap for your dyeing machine maintenance program. Implementing a structured maintenance plan not only prevents costly breakdowns but also ensures your equipment performs at optimal efficiency. It’s a strategic step that helps reduce operational risk, maintain consistent dyeing quality, and extend the service life of your machinery—turning maintenance into a long-term productivity booster..

4.1 Stage 1: The Initial 500-Hour Service (For New Machines)

For a brand-new dyeing machine, the first 200 to 500 hours of operation mark a critical break-in period. During this phase, mechanical components like bearings, pumps, and seals begin to align, settle, and wear into their optimal positions. Close monitoring of temperature, vibration, and performance is essential to catch early anomalies and make timely adjustments. A well-managed break-in period helps ensure long-term machine stability, minimizes unexpected wear, and lays the groundwork for efficient dyeing machine maintenance.

• Task: As part of early-stage dyeing machine maintenance, it is essential to re-torque all bolts on the heat exchanger and across the machine frame to ensure they are properly secured and can withstand thermal expansion during operation. Additionally, inspect and re-tension all drive belts to maintain optimal belt tension and prevent slippage, vibration, or uneven power transmission. These steps are critical to ensuring your dyeing machine remains stable, safe, and efficient throughout its service life.
• Why: During the initial operation, thermal expansion and mechanical vibration can cause bolts to slightly loosen, even if they were properly torqued during assembly. Left unchecked, this can lead to leaks, misalignment, or even long-term structural issues in the dyeing machine. Performing this one-time re-torque procedure during the break-in phase is a simple yet crucial step to ensure sealing integrity and mechanical stability going forward.

4.2 Stage 2: Post-Shift Daily Checks (The Operator’s Role)

This is the foundation of your dyeing machine maintenance program, performed by the operator at the end of every shift.

• Checklist:
  • Clean or replace the main circulation pump’s filter core.
  • Inspect and wipe down the main door’s rubber gasket and the filter housing seal.
  • Flush the chemical dosing pump with clean water after the last injection.
  • Drain any condensation from the air-water separator for the pneumatic system.
• Accountability: Use a sign-off sheet where the operator confirms these tasks are completed. This simple step in your dyeing machine maintenance prevents 80% of minor running issues.

To ensure no dyeing machine maintenance step is overlooked, the assigned technician must sign off at the end of each shift. This simple verification step serves as both a cross-check and an accountability mechanism, reinforcing a culture of responsibility and diligence. In continuous production environments like textile dyeing, signed maintenance logs also provide traceability for audits, troubleshooting, and performance reviews—making them an essential part of operational integrity.

4.3 Stage 3: Weekly Inspections (The Technician’s Review)

Once a week, a technician should perform a more detailed inspection. This is a critical phase for detecting hidden faults that may not be obvious during normal machine operation. By closely monitoring abnormal sounds, subtle vibrations, or temperature deviations, maintenance teams can proactively plan part replacements, preventing unexpected breakdowns. It’s also an ideal window to gather real-world performance data to fine-tune maintenance intervals based on actual wear patterns; ensuring cost efficiency and sustained productivity.

• Checklist:
  • Check the oil level of the main pump’s bearings (it should be in the middle of the sight glass).
  • Manually test the motor’s overload relays to ensure all safety alarms are functional.
  • Clean the control panel and inspect all gauges (pressure, temperature) for clear readings.
  • Apply grease to all lubrication points (zerk fittings) as specified by the OEM.
  • Check bolts on the machine base, stairs, and safety guards for tightness.

As part of your routine dyeing machine maintenance, it’s essential to perform the following checks: Inspect the safety valve, main pump shaft, and auxiliary tank pump shaft to ensure pressure control and mechanical stability. Evaluate the door opening/closing mechanisms, self-sealing gaskets, and couplings for tightness and wear. Clean all analog sensors and electrical cabinet filters to maintain signal accuracy and prevent system failures. Lastly, check for leaks around mechanical seals and gaskets, as these are common sources of pressure loss and thermal inefficiency in dyeing operations.

4.4 Stage 4: Monthly Mechanical and Electrical Checks

This deeper inspection aims to catch developing problems.

• Checklist:
  • Test the pressure relief safety valve to ensure it’s not stuck.
  • Inspecting the safety valve, main pump shaft, and auxiliary tank pump shaft is a critical part of dyeing machine maintenance
  • Check the door’s opening/closing mechanism and the integrity of the main coupling.
  • Clean all analog sensor probes and the filters for the main electrical cabinet’s cooling fans.
  • Listen closely to the gearbox during operation for any signs of rumbling or whining that could indicate bearing wear, and rubber O-ring.

If you notice shaft misalignment, slight vibration, or unusual heat generation in the gearbox, these are early signs of potential mechanical failure. Such symptoms may indicate bearing wear, imbalance in the drive shaft, or poor lubrication—and require immediate technical attention. Delaying intervention can result in severe damage, including shaft breakage, motor burnout, or complete production downtime. In textile manufacturing, even the slightest abnormal vibration can escalate quickly—proactive response is critical.

4.5 Stage 5: Semi-Annual Deep Dive (The 6-Month Service)

This process requires considerable machine downtime and must be handled by skilled technicians. Tasks such as disassembling critical components, realigning shafts, calibrating sensors, or checking pressure valves demand precision and a deep understanding of the dyeing system. While it may consume time and resources, it is essential for ensuring safety, extending equipment lifespan, and maintaining consistent production efficiency.

• Checklist:
  • Change the gearbox oil according to the manufacturer’s specifications.
  • Inspect all heat exchanger valves, check valves, and counterweight systems.
  • Thoroughly clean the inside of the main electrical cabinet with a dedicated electronics vacuum.
  • Check the tension and condition of all motor drive belts.

This is an advanced stage of dyeing machine maintenance, requiring either highly skilled in-house technicians or collaboration with external specialized service providers. Tasks such as shaft alignment, closed-system pressure testing, sensor calibration, and software diagnostics involve complex procedures where errors can lead to major equipment failures. Investing in qualified personnel or partnering with trusted maintenance experts helps ensure technical accuracy, operational safety, and long-term machine durability.

4.6 Stage 6: The Annual Overhaul (Full System Inspection)

At least once a year, a full-scale professional overhaul of your dyeing machine is essential. This represents the most comprehensive phase of the dyeing machine maintenance program, covering mechanical inspection, recalibration of electrical and automation systems, replacement of worn-out parts, and control software updates if applicable. A scheduled overhaul helps prevent catastrophic failures, improves operational efficiency, reduces energy consumption, and extends the service life of your equipment.

• Checklist:
  • Perform a full internal inspection of the stainless-steel vessel, looking for any signs of pitting corrosion or weld fatigue.
  • Inspect and test all diaphragm valves, butterfly valves, and piston valves. Replace worn diaphragms or seals.
  • Recalibrate all temperature and pressure sensors against a certified reference device to ensure accuracy.
• Documentation: Every task, measurement, and part replacement should be logged in a maintenance journal for that specific machine. This history is invaluable for troubleshooting future issues.

Case Study: A Factory’s Successful Maintenance Turnaround

A textile factory in Southeast Asia specializing in cotton dyeing was experiencing an average of 14 hours of unscheduled downtime per month, costing them over $10,000 USD in wasted energy, materials, and labor. After implementing a structured dyeing machine maintenance program based on the checklist above, the results after three months were dramatic:

• Downtime was reduced to less than 2 hours per month.
• Repair costs decreased by 35% due to proactive part replacement.
• Overall productivity increased by 12% because the machines were always ready to run.

The Power of Technology in Modern Maintenance

• IoT Sensors: Retrofitting machines with IoT sensors allows for continuous monitoring of vibration and temperature, enabling a move towards a more efficient predictive maintenance strategy.
• CMMS Software: Using a Computerized Maintenance Management System (like Fiix or UpKeep) helps schedule tasks, track part inventory, and automatically generate work orders, bringing professional organization to your dyeing machine maintenance efforts.

Conclusion: Maintenance as a Competitive Advantage

A disciplined, multi-stage dyeing machine maintenance program is not an expense—it is a powerful investment in quality, efficiency, and profitability. By shifting from a reactive mindset to a proactive and predictive strategy, you can significantly reduce costs, increase productivity, and ensure your factory consistently delivers high-quality products.

Your Partner in Dyeing Machine Performance

VieTextile is a leading partner for textile mills in Vietnam, providing expert dyeing machine maintenance services, genuine textile machinery spare parts, and emergency support. We help our clients implement smart maintenance strategies and upgrade their systems with modern sensor technology.

Contact us today for a consultation on building a maintenance program that drives results for your factory.

FAQ

1. How often should a dyeing machine really be maintained? It depends on usage, but a good baseline is: perform minor operator checks daily/weekly, have a technician perform deeper inspections monthly, and schedule a full professional overhaul annually.

2. Should we handle maintenance in-house or hire an external service? Your in-house team, if properly trained, can handle all daily, weekly, and most monthly tasks. However, it is highly recommended to partner with a professional service provider for complex tasks like the annual overhaul, sensor calibration, and major component replacements.

3. What are the earliest warning signs that a dyeing machine is about to fail? Listen for changes! An increase in machine vibration, a new noise from a motor or pump, or a cycle that takes longer to heat up are all early indicators that a component is starting to fail.

4. Is there software that can help me plan my dyeing machine maintenance? Yes. CMMS (Computerized Maintenance Management System) software like UpKeep or Fiix is designed for exactly this. It allows you to schedule tasks, log work, and track the maintenance history of every machine.

5. Besides downtime, what is the biggest cost of poor maintenance? Inconsistent quality. A poorly maintained machine with fluctuating temperatures or pressure will produce inconsistent shades, leading to entire batches being rejected by clients, which is often far more costly than the repair itself.

Are you a textile mill owner, production engineer, or dye house manager searching for the optimal dyeing solution for cotton fabrics? Choosing the right cotton fabric dyeing machine is one of a factory’s most impactful decisions, directly influencing product quality, production costs, and overall profitability. A suboptimal choice leads to wasted resources, while the right machine becomes a cornerstone of quality and efficiency.

Cotton, as the world’s most popular natural fiber, is prized for its softness and absorbency. However, these very properties make it a challenge to dye evenly and efficiently. The right cotton fabric dyeing machine must provide precise control over the dyeing environment to ensure deep color penetration, excellent fastness, and consistency from batch to batch. This guide provides an in-depth analysis of the technologies available, the key selection criteria, and the operational best practices you need to master cotton dyeing.

1. Why Dyeing Cotton Requires Specialized Machinery

Unlike synthetic fibers, cotton is a natural cellulosic fiber. This chemical makeup dictates how it interacts with dyes and requires a specific set of conditions for a successful, permanent bond. A specialized cotton fabric dyeing machine is engineered to manage these variables perfectly, which is why, according to Textile Today, factories using the correct technology can reduce operating costs by up to 28% and increase color consistency by 45%. The right cotton fabric dyeing machine is truly a strategic asset.

2. The Unseen Factor: Why Water Quality is Critical

Before even discussing machinery, it’s vital to address the most fundamental ingredient in your dye bath: water. The quality of your water can make or break the dyeing process, and no cotton fabric dyeing machine, no matter how advanced, can compensate for poor water quality.

2.1 The Problem with Hard Water

Hard water contains high concentrations of mineral ions, mainly Calcium (Ca²⁺) and Magnesium (Mg²⁺). In the alkaline environment of a reactive dye bath, these ions can cause serious disruption. They tend to react with dye molecules or auxiliaries, forming insoluble precipitates that hinder dye dispersion. This leads to uneven dyeing, patchiness, reduced color fastness, and overall lower dyeing efficiency. Therefore, implementing water softening measures is critical to ensure dye quality, consistency, and cost-effective production, and these ions cause havoc:

• Calcium (Ca²⁺) and Magnesium (Mg²⁺) ions in hard water react with reactive dyes, causing a portion of the dye to precipitate out of the solution. As a result, the dye is no longer evenly dispersed in the bath, leading to spotty dyeing and uneven coloration on the fabric. This also causes a reduction in color yield, meaning less dye actually bonds with the fibers, lowering dyeing efficiency and quality.
• During the wash-off phase, Calcium (Ca²⁺) and Magnesium (Mg²⁺) ions in hard water react with soaps, forming insoluble scum. This residue adheres to the fabric surface, resulting in a harsh, rough hand feel. The presence of this scum not only compromises fabric softness but also interferes with subsequent finishing processes such as calendering, printing, or softening—ultimately affecting the overall quality of the textile.

2.2 Other Contaminants to Watch For

• Iron (Fe²⁺/Fe³⁺): Even in trace amounts, iron ions can noticeably dull the brilliance of bright shades during the dyeing process. Iron reacts with many reactive dyes—especially reds, oranges, yellows, and bright blues—causing undesired tone shifts and making the final color appear darker or muted. This is why monitoring and controlling heavy metal content in water is crucial for achieving consistent and vibrant dyeing results.
• Copper (Cu²⁺): In dyeing environments, copper ions can act as uncontrolled catalysts, potentially causing unexpected shade variations. Even at low concentrations, Cu²⁺ can alter the reaction rate between reactive dyes and fibers, resulting in color shifts or uneven dyeing. Copper may enter the process via water sources or corroded metal parts in equipment. Therefore, monitoring copper levels in process water is critical to maintaining consistent and predictable dyeing results.

2.3 The Solution: Water Treatment

For these reasons, every professional dye house must be equipped with a water treatment system. This typically includes water softeners that rely on an ion-exchange process to remove calcium (Ca²⁺) and magnesium (Mg²⁺) ions—common culprits behind dyeing inconsistencies. Ensuring pure, softened water is essential for achieving accurate, even, and durable color results. In fact, pre-treating your water is just as important as pre-treating your fabric—both are critical steps toward high-quality textile dyeing.

2.4 Industry Water standards specify for cotton dyeing process

When operating a cotton fabric dyeing machine, ensuring proper water quality is essential to achieving consistent dyeing results. Industry standards specify that the water must have neutral pH (7–8), be colorless and odorless, and contain less than 0.1 mg/l of iron and 0.02 mg/l of manganese. Water hardness should not exceed 5° dH, and total evaporation residues must be below 500 mg/l. Failing to meet these standards can cause dye precipitation, shade inconsistencies, and reduced colorfastness. That’s why modern dye houses invest in professional water treatment systems before feeding water into cotton fabric dyeing machines.

3. An In-Depth Look at the Industrial Cotton Dyeing Cycle

A modern cotton fabric dyeing machine facilitates a complex, multi-stage chemical and mechanical process—from pre-treatment to setting, dyeing, rinsing, and finishing steps. Each stage directly impacts color fastness, fabric hand feel, and overall production efficiency. Therefore, understanding this entire cycle is crucial for effective troubleshooting, optimization, and cost control. Technicians and production managers who grasp these dynamics can unlock higher quality outputs and ensure consistent performance across dye lots.

3.1 Phase 1: Pre-treatment – The Foundation for Quality

This is the most critical step inside the cotton fabric dyeing machine and often underestimated phase in the dyeing process. Raw cotton contains natural waxes, oils, pectins, and motes that form a hydrophobic barrier, preventing water and dye from properly penetrating the fibers. If not adequately removed during pre-treatment, these substances cause uneven dyeing, poor color fixation, and reduced fastness. Therefore, effective scouring and preparation are essential to ensure the dye adheres evenly and produces high-quality, vibrant cotton fabric.

• Scouring & Bleaching: are critical pre-treatment stages where cotton fabric is washed in a hot, alkaline bath to remove natural waxes, oils, and impurities, followed by bleaching to create a uniform, clean white base. This step dramatically improves the absorbency of the cotton, ensuring that dyes can penetrate evenly and consistently. A well-executed pre-treatment sets the foundation for high-quality dyeing, minimizing color defects and maximizing vibrancy and fastness.
• Singeing & Desizing: are essential pre-treatment processes to ensure a clean, dye-ready fabric surface. In the singeing phase, the fabric is quickly passed over controlled flames or treated with enzymes to remove protruding surface fibers, resulting in a smoother texture. The desizing step then eliminates the sizing agents (typically starch or PVA) applied during weaving to strengthen yarns. Removing these materials is crucial for enhancing dye penetration and preventing uneven coloration or staining during dyeing..

3.2 Phase 2: The Dyeing Phase – The Chemical Reaction

This is where the cotton fabric dyeing machine’s precision is paramount. For cotton, this almost always involves Reactive dyes, which form a permanent covalent bond with the cellulose fibers.

• Dye & Salt Application: The dye and a large amount of salt (like sodium chloride) are added to the bath. The salt helps push the dye out of the water and onto the fabric surface, a process called “exhaustion.”
• Alkali Application: After the dye has been evenly absorbed, an alkali (like soda ash) is added. This raises the pH to 10-11, activating the dye and triggering the chemical reaction that permanently “fixes” it to the cotton fibers. The cotton fabric dyeing machine must maintain a stable temperature (e.g., 60°C or 80°C depending on the dye) during this phase.

3.3 Phase 3: The Washing-Off (Soaping) Phase

After dyeing, not all dye has bonded. A significant portion has reacted with the water (hydrolyzed) and must be removed.

• Rinsing and Soaping: The fabric undergoes a series of hot rinses and is washed with special detergents. This removes all unfixed dye particles.
• Why It’s Critical: If this stage is incomplete, the fabric will suffer from poor “crocking” (color rubbing off) and “bleeding” during home laundering. As dyeing expert Kurt Mayer famously stated, “80% of color problems in textile dyeing come from the post-dyeing treatment stage, not from the dye itself.”

4. Comparing the 3 Main Types of Cotton Fabric Dyeing Machines

Choosing the right type of cotton fabric dyeing machine depends largely on the form of the fabric (e.g., rope, open-width, yarn) and your production volume. For high-output operations using fabric in rope form, jet dyeing machines offer excellent efficiency and fabric handling. In contrast, winch or sample dyeing machines are ideal for smaller batches or development work. Selecting the proper equipment is essential to optimize productivity, reduce operational costs, and ensure consistent dye quality in modern textile production.

4.1 The Jet Dyeing Machine: For Speed and Efficiency

• How it Works: In a jet dyeing machine, the fabric rope is circulated through a closed loop by a high-pressure jet of dye liquor. This turbulence ensures rapid and uniform dyeing. There are “soft-flow” jets for more delicate fabrics and “hard-flow” jets for robust materials.
• Best For: High-volume production of both woven and knitted cotton fabrics. A jet cotton fabric dyeing machine is the workhorse of the modern dye house.
• Pros: Very fast dyeing cycles (40-60 mins), low liquor ratio for resource savings, and high automation.

4.2 The Overflow Dyeing Machine: For Gentle, High-Quality Finishing

• How it Works: This machine uses a gentle, high-volume cascade or “overflow” of dye liquor to circulate the fabric. The mechanical action is much softer, which is crucial for preventing pilling on delicate cotton knits.
• Best For: High-value cotton fabrics such as fine knits (interlock, single jersey), cotton/silk blends, or lightweight apparel where maintaining a soft feel is paramount.
• Pros: Extremely gentle on fabric, preserves natural softness, and produces excellent color leveling. This is a very popular type of cotton fabric dyeing machine for premium goods.

4.3 The Beam Dyeing Machine: For Wide and Heavy Fabrics

• How it Works: The fabric is wound onto a large, perforated beam, which is then placed inside the dyeing vessel. Dye liquor is forced through the fabric layers.
• Best For: Open-width woven cotton fabrics, especially those prone to creasing, such as denim, canvas, and wide home furnishing textiles. A beam cotton fabric dyeing machine is a specialist tool.
• Pros: Eliminates creasing and tangling, space-efficient design.

5. 6-Key Criteria for Selecting a Cotton Fabric Dyeing Machine

When evaluating any cotton fabric dyeing machine, analyze these six technical factors:

1. Precise Temperature Control: The machine must hold a stable temperature within ±1°C.
2. Alkaline Resistance: All parts must be made from high-grade, corrosion-resistant stainless steel (SS316L) to withstand the high pH of the dyeing process.
3. Variable Speed Control: The machine should offer flexible control over reel speed or pump pressure.
4. Low Liquor Ratio Technology: A lower liquor ratio is the single most important factor for sustainable and cost-effective operation. A modern cotton fabric dyeing machine should achieve a ratio of 1:6 or lower.
5. Automation & Control System (PLC): A user-friendly PLC that allows for recipe storage, automated chemical dosing, and integration with a central factory server is essential for consistency and efficiency.
6. Ease of Maintenance: The cotton fabric dyeing machine should be designed with easy-to-access filters, pumps, and valves to simplify your proactive maintenance plan.

6. Troubleshooting Common Cotton Dyeing Defects

Even with a high-quality cotton fabric dyeing machine, process errors can still occur if parameters aren’t carefully monitored. Common issues include uneven dyeing, color blotches, or weak color fastness, often caused by inconsistent temperatures, incorrect dye ratios, or poor circulation. To troubleshoot, operators should inspect the dye bath pH, circulation speed, pressure levels, and dosing accuracy. Additionally, regular maintenance and sensor calibration are essential to ensure consistent performance and optimal dyeing results.

• Issue: Uneven Dyeing (Barriness or Streaks).
  • Causes: Improper pre-treatment (scouring), incorrect loading of the fabric rope, dye added too quickly, or incorrect salt concentration.
  • Solution: Ensure scouring is thorough. Load the machine to its recommended capacity (don’t under-load or over-load). Add dye and chemicals over a longer period (dosing) rather than all at once.
• Issue: Crease Marks.
  • Causes: The fabric rope tangling or stopping in a jet machine, improper cooling after the high-temperature cycle, or incorrect fabric speed.
  • Solution: Use an appropriate anti-creasing agent in the dye bath. Ensure the machine is loaded correctly to allow free movement of the fabric rope. Implement a gradual cooling cycle.
• Issue: Poor Color Fastness (Crocking/Bleeding).
  • Cause: This is almost always due to an incomplete washing-off phase. The hydrolyzed, unfixed dye has not been fully removed.
  • Solution: Ensure your post-dyeing process includes at least two hot rinses and a thorough, high-temperature soaping cycle with a quality detergent.

7. Sustainability & Modern Certifications

The global textile industry is shifting rapidly toward sustainable production, with increased focus on reducing water usage, chemical waste, and energy consumption. In this landscape, a modern cotton fabric dyeing machine plays a vital role. New-generation machines are designed for high efficiency, capable of cutting water use per kilogram of fabric, lowering emissions, and shortening dyeing cycles. Investing in such equipment is key for manufacturers looking to meet international sustainability standards while maintaining high-quality, consistent output.

• Bluesign® & OEKO-TEX®: These are global standards that certify textiles are free from harmful substances. Achieving these certifications requires strict control over the chemicals and processes used.
• ZDHC (Zero Discharge of Hazardous Chemicals): A program focused on eliminating harmful chemicals from the supply chain. A low-liquor-ratio cotton fabric dyeing machine helps factories achieve these certifications by drastically reducing water consumption and the volume of chemical effluent that needs to be treated

8. Ancillary Equipment for Your Dye House

A cotton fabric dyeing machine does not operate in a vacuum. A professional dye house requires:

• Water Treatment Plant: To provide soft, purified water free of minerals that can interfere with dyeing.
• Automated Chemical Dosing Systems: For accurately and safely dispensing dyes and chemicals.
• Laboratory Equipment: Including spectrophotometers for computerized color matching and lab-scale dyeing machines for testing recipes before committing to a large production batch.

9. Conclusion: A Strategic Investment in Quality

Choosing the right cotton fabric dyeing machine is a long-term strategic investment in quality and efficiency. A modern, low-liquor-ratio machine will pay for itself through substantial savings on water, energy, and chemicals, while providing the process control needed to produce high-quality, consistent results. For small businesses, an Overflow machine may be the perfect start. For large-scale industrial production, an automated Jet or Beam cotton fabric dyeing machine is essential for achieving the cost-efficiency and quality needed to compete in today’s market.

10. FAQ

1. Which dyeing machine is best for small batches of cotton? For sample dyeing or small custom orders, an Overflow machine or a smaller-capacity Round Tube dyeing machine is an excellent choice due to lower initial investment and stable quality on lightweight cotton fabrics.

2. Can I use disperse dyes on a cotton fabric dyeing machine? No. Disperse dyes are for polyester. The best and most common dye class for cotton is reactive dyes, due to their bright colors and excellent wash fastness.

3. Why is my cotton fabric’s color uneven even with a modern machine? This is likely a process issue. The most common causes are improper pre-treatment (scouring), incorrect temperature or pH during the cycle, or insufficient washing after dyeing. The cotton fabric dyeing machine can only be effective if the process is correct.

4. How does a Jet dyeing machine save water? Modern high-efficiency Jet machines use low liquor ratios and powerful circulation systems that require less water to fully saturate the fabric compared to older Overflow models. This can reduce water consumption by 30-40%.

5. What is the most important pre-treatment step for cotton? Scouring. This is the alkaline washing process that removes the natural waxes and oils from the cotton fiber. Without proper scouring, the fiber remains water-repellent, and the dye cannot penetrate evenly, leading to blotchy results.
