In the modern textile industry, the Tsudakoma Air Jet Loom is recognized as a leader in speed and reliability. However, the peak operating performance of these machines relies not only on the initial technology but also absolutely on the quality and condition of every component, especially the Tsudakoma Air Jet Loom spare parts. Any degradation or failure of even the smallest component can have significant consequences for overall productivity and the quality of the final product.

This in-depth analysis aims to clarify the close relationship between investing in and maintaining high-quality Tsudakoma Air Jet Loom spare parts with a company’s competitiveness. We will delve into each core group of spare parts, from the weft insertion mechanism to the electronic systems, to clearly understand their direct impact on weaving performance indicators and the Fabric Standard.

1. The Impact of Tsudakoma Air Jet Loom Spare Parts on Productivity (Performance Output)

Loom productivity is measured by the number of picks per minute (PPM) and the Machine Efficiency (ME) ratio. Tsudakoma Air Jet Loom spare parts play a crucial role in maintaining both these indicators.

1.1. Weft Insertion System and Operating Speed

The weft insertion system (including the Main Nozzle and Sub-Nozzles) is where Tsudakoma Air Jet Loom spare parts demonstrate their role most clearly in terms of speed.

• Main and Sub-Nozzles: Responsible for generating the pneumatic thrust and maintaining a stable airflow to propel the weft yarn across the loom width at speeds of 1800–2500 PPM.
• Worn Nozzles: When the Tsudakoma Air Jet Loom spare part Nozzle is worn or the bore diameter enlarges, aerodynamic efficiency drops. This forces the machine to increase air pressure to maintain speed, leading to high energy consumption and, more importantly, instability in the insertion process, which increases weft breaks and forces the machine to stop.
• Machine Efficiency (ME): A set of low-quality Tsudakoma Nozzles can reduce efficiency by to 10%, equivalent to hundreds of meters of lost fabric daily.
• Solenoid Valves: The response time of these valves is extremely important. Poor-quality valves have slow opening/closing times, causing a misalignment of the weft insertion timing relative to the main Cam motion, resulting in weft faults and limiting the maximum weaving speed the machine can achieve.

1.2. Cutting Mechanism and Stop Motion

The cutting mechanism and stop motion sensors must operate synchronously and accurately.

• Cutter Blade: The cutter blade is one of the fastest-wearing Tsudakoma Air Jet Loom spare parts due to high friction and cutting frequency. A dull cutter will not cut the yarn cleanly, causing selvedge defects and weft breaks, forcing the machine to stop to remove the fault. Downtime frequency due to cutting faults is a major cause of productivity loss.
• Sensors: Inaccurate or slow-response Warp/Weft Stop Motion Sensors can cause delayed reactions, leading to extended fabric defects (long smash) and material waste, directly affecting the ME index.

2. The Impact of Tsudakoma Air Jet Loom Spare Parts on Fabric Quality

Fabric quality is assessed by the uniformity of the weft density, the perfection of the selvedge, and the Defect Rate.

2.1. Nozzle Precision and Weft Density (Picks Density)

• Thrust Distribution: High-quality Tsudakoma Air Jet Loom spare parts Nozzles ensure the pneumatic thrust is distributed evenly across the entire fabric width. Worn or low-quality Nozzles create inconsistent airflow, leading to the weft yarn being slack or overly tense in different positions.
• Uneven Weft Density: This instability results in an uneven Weft Density (Picks Per Inch – PPI), a severe defect for high-quality fabrics. This cannot be fixed after the fabric is woven and leads to an increased defect rate.

2.2. Selvage Quality

Selvedge quality depends on the cutter blade and the Tucking Device.

• Cutter Sharpness: Sharp and precise Tsudakoma Air Jet Loom spare parts cutter blades ensure a clean, fray-free selvedge, creating a neat and sturdy border.
• Tucking Device: The components of the tucking unit must be precisely machined and free from wear. Worn gripping components reduce the clamping force, causing selvedge yarns to slip out, creating loose selvedge defects that impact the aesthetics and durability of the fabric.

2.3. Electronic Components and Fabric Uniformity

Control boards and sensors are crucial Tsudakoma Air Jet Loom spare parts responsible for the consistency of the weaving cycles.

• Control Boards (PCB): If the control board (e.g., Weft Insertion Controller) is unstable or a non-genuine part is used, it can cause minor timing discrepancies in valve operation, leading to differences in weft density between weaving cycles and creating subtle horizontal streaks (banding/barre) defects.

3. The Role of the Lubrication System and Beating-up Mechanism

Tsudakoma Air Jet Loom spare parts related to mechanical and lubrication systems play a silent but decisive role in the long-term stability and quality of high-speed weaving.

3.1. Auto-Lubrication System Spares

Modern Tsudakoma looms use an auto-lubrication system to precisely deliver grease and oil to high-friction points like cam joints and main shafts.

• Oil Pump, Metering Valves, and Hoses: The quality of the Oil Pump, Metering Valves, and delivery hoses is critical. If the metering valves are worn or clogged (due to poor-quality oil), insufficient lubrication is provided, leading to excessive wear and heat generation in vital areas like the Cam Box, Main Gear Box, and Bearings.
• Impact on Vibration: Insufficient lubrication increases the loom’s Vibration. High vibration not only shortens the lifespan of electronic Tsudakoma Air Jet Loom spare parts (PCBs, sensors) but also directly affects the tension and stability of the warp yarns, increasing warp break faults and fabric defects.

3.2. Impact of Cams and Bearings on Fabric Uniformity

Core mechanical Tsudakoma Air Jet Loom spare parts govern the fundamental movements of the weaving process.

• Cam and Tappet Assembly: The Cam controls the Beating-up motion and Shedding. Wear on the Cam surface or Cam Follower bearings will cause small deviations in the beating-up timing. This deviation, even by milliseconds, changes the actual Picks Per Inch (PPI), resulting in horizontal streaks and affecting fabric uniformity.
• Main Bearings: Low-quality or end-of-life Main Bearings (non-genuine Tsudakoma Air Jet Loom spare parts) introduce play in the main shaft, undermining the absolute precision required for high-speed weaving.

4. Analysis of Hidden Costs and Risks of Using Non-Genuine Spares

Many SMEs try to reduce initial costs by choosing non-genuine Tsudakoma Air Jet Loom spare parts, but this often leads to greater hidden costs and risks.

4.1. Increased Energy and Air Consumption

• Pneumatic Efficiency: Non-genuine Tsudakoma Air Jet Loom spare parts Nozzles often fail to meet the machining precision of OEM parts. This increases pneumatic friction and reduces propulsion efficiency, forcing technicians to increase the loom’s operating pressure, leading to a significant rise in electricity costs for the air compressor (the largest operating cost).

4.2. Unscheduled Downtime and Maintenance Costs

• Shorter Lifespan: Low-quality Tsudakoma Air Jet Loom spare parts have a 30% to 50% shorter lifespan than genuine parts. This requires more frequent replacement and increases maintenance labor costs.
• Sudden Breakdown: Inferior components are prone to sudden failure, causing Unscheduled Downtime. The cost loss for each hour of downtime can reach hundreds of USD (lost revenue opportunity, waiting labor costs, depreciation).

4.3. Quality Losses and Reputation Damage

• Fabric Defects: Non-genuine Tsudakoma Air Jet Loom spare parts are often the direct cause of fabric defects. When the defect rate rises, profit decreases, and more importantly, the mill’s reputation with export customers is damaged.

5. Early Fault Detection Techniques

Early fault diagnosis by monitoring critical indicators is key to extending the lifespan of Tsudakoma Air Jet Loom spare parts and minimizing downtime.

5.1. Utilizing Compressed Air Pressure Sensors

• Monitoring Indicators: Tsudakoma looms are equipped with pressure sensors at each Nozzle cluster (main, sub, and Relay Nozzles). Technicians must monitor abnormal changes in air pressure.
• Early Warning Signal: If the necessary pressure to propel the weft yarn begins to increase over time, it is a clear sign that the Nozzle is worn or the valve is leaking. Replacing the Tsudakoma Air Jet Loom spare part early when this indicator exceeds the threshold (instead of waiting for a weft break fault) helps save energy and maintains productivity.

5.2. Electronic Fault Diagnosis via HMI Screen

• Analyzing Error Logs: The HMI (Human Machine Interface) screen of the Tsudakoma loom provides a detailed Error Log. Technicians should analyze the frequency of weft stop faults based on each control valve.
• Identifying Faulty Components: If a specific Solenoid Valve consistently causes weft stop faults, this indicates that the valve has a Slow Response Time or is stuck, requiring immediate replacement. This is an efficient method to accurately identify which Tsudakoma Air Jet Loom spare part needs replacing without dismantling the entire valve unit.

6. Smart Investment Strategy for Tsudakoma Air Jet Loom Spare Parts

To optimize TCO and maintain performance, mills need to adopt a smart procurement strategy, built on real operational data.

6.1. Prioritized Investment in Core Wear Components

• Nozzles and Valves: These are the two types of Tsudakoma Air Jet Loom spare parts that must be purchased as absolute priority, either genuine (OEM) or from authorized suppliers with high-quality certification. Ensuring quality in this area is key to energy savings and reducing weft faults.
• Cutter Blades: Similarly, high-quality cutter blades ensure perfect selvedges and reduce the frequency of machine stops.

6.2. Life Cycle Management

Replacement should not happen only after failure but according to a forecasted cycle based on the number of Picks woven.

• MTBF Forecasting: Accurately record the lifespan of each batch of Tsudakoma Air Jet Loom spare parts. Replace proactively 5% before the projected MTBF to avoid the risk of sudden downtime.
• Technical Consultation: Utilize the consulting services of reputable Tsudakoma Air Jet Loom spare parts suppliers to determine the optimal maintenance and replacement cycle for different yarn materials.

6.3. ABC/Pareto Inventory Management

Effective inventory management optimizes working capital and ensures the availability of Tsudakoma Air Jet Loom spare parts when needed.

• Group A (Critical – 80% Value): Includes Nozzles, PCBs, and complex mechanical assemblies. These are the most expensive and critical items. Maintain minimum stock, but ensure rapid supply from the authorized vendor.
• Group B (Medium – 15% Value): Includes control valves, bearings, cutter blades. Maintain a safe stock level as they have an average replacement frequency and directly impact productivity.
• Group C (Low – 5% Value): Standard gaskets, air filters, standard bolts. Stock large quantities, as they are inexpensive and frequently used.

7. Conclusion: Quality Investment is Productivity Investment

The influence of Tsudakoma Air Jet Loom spare parts on fabric quality and productivity is direct and decisive. Choosing genuine or high-quality OEM Tsudakoma Air Jet Loom spare parts is the smartest strategy, helping mills to:

• Maintain the highest Machine Efficiency (ME), ensuring maximum productivity.
• Minimize compressed air consumption and operating costs.
• Ensure consistent fabric quality, meet export standards, and strengthen brand reputation.

VieTextile is a pioneer in providing comprehensive, high-quality Tsudakoma Air Jet Loom spare parts solutions, committed to offering specialized technical support to optimize your weaving performance.

8. Frequently Asked Questions (FAQ) about Tsudakoma Air Jet Loom Spare Parts

Q1: Are Tsudakoma Air Jet Loom spare parts compatible with other air jet loom brands? A1: Most core Tsudakoma Air Jet Loom spare parts (like Nozzles, control PCBs) are proprietary and are not compatible with machines from other brands like Toyota or Picanol. However, some standard spare parts (bearings, standard sensors) might be interchangeable. Always check the precise Tsudakoma Air Jet Loom spare part number before purchasing.

Q2: How can I distinguish between genuine and counterfeit Tsudakoma Air Jet Loom spare parts? A2: Genuine Tsudakoma Air Jet Loom spare parts often feature anti-counterfeit labels, clear Part Numbers, high-grade machining materials (especially for wear-resistant metal parts), and come with a CO/CQ certificate from an authorized supplier. The most obvious difference lies in the dimensional accuracy and surface finish.

Q3: Does compressed air pressure deviation directly affect fabric quality? A3: Yes, compressed air pressure deviation (whether due to valve failure or worn Nozzles) directly affects the weft insertion force, causing the weft yarn to be slack or overly tense, leading to uneven weft density defects, which create horizontal streaks (barre) on the fabric surface.

9. VieTextile – Genuine Tsudakoma Air Jet Loom Spare Parts Supplier Partner

VieTextile is proud to be a strategic partner, specializing in genuine Tsudakoma Air Jet Loom spare parts solutions and specialized technical maintenance services, helping mills to:

• Ensure OEM Quality: Supply Tsudakoma Air Jet Loom spare parts with clear origin, meeting strict technical standards to maximize operational lifespan.
• Optimize Productivity: Provide technical support for Nozzle diagnosis and calibration, helping the loom achieve maximum speed and maintain the highest machine efficiency.
• Reduce Hidden Costs: Consult on preventive maintenance and inventory strategies, helping to lower energy costs and the risk of sudden downtime.

For detailed consultation on Tsudakoma Air Jet Loom spare parts solutions and weaving performance optimization, please contact us immediately:

Contact Information:

Hotline: 0901 809 309

Email: info@vietextile.com

Website: https://vietextile.com

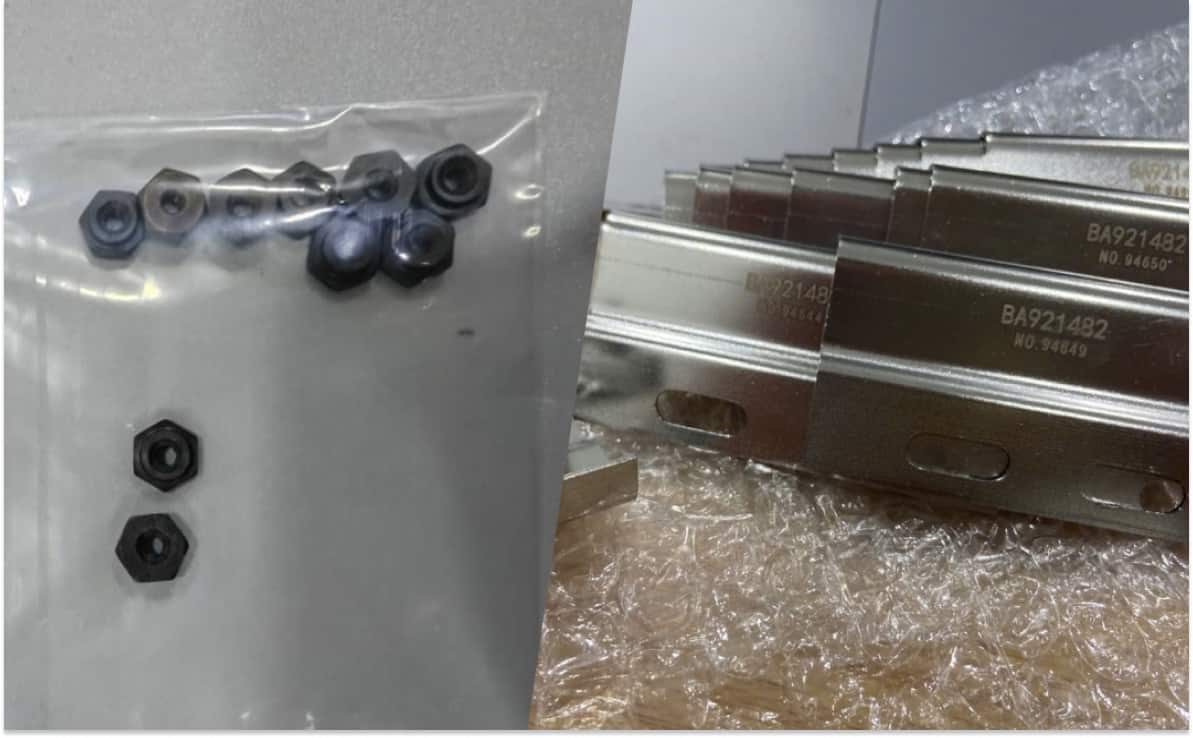

The Itema Air Jet Loom is known as one of the most advanced pieces of equipment in the textile industry, delivering exceptional speed and efficiency. However, to maintain peak productivity and equipment lifespan, managing and maintaining Itema Air Jet Loom spare parts is a critical factor. Wear and tear on components like Nozzles, air valves, and cutter blades can lead to fabric defects, compressed air wastage, and costly downtime.

This in-depth analysis will delve into detailed Preventive Maintenance (PM) procedures, providing guidance on diagnosing and replacing Itema Air Jet Loom spare parts for core wear components. This is an essential guide to help the technical teams of textile mills optimize operating costs and ensure stable export quality.

1. The Importance of Preventive Maintenance (PM) for Itema Air Jet Loom Spare Parts

Preventive Maintenance is not just about fixing faults; it is a proactive strategy to keep the equipment in optimal condition, which is especially crucial for high-speed weaving machines like Itema.

1.1. Impact of PM on Equipment Lifespan and TCO

• Extended Component Lifespan: Routine cleaning and lubrication of mechanical Itema Air Jet Loom spare parts help reduce friction and heat, thereby extending the life of components like Cams and Cutter Blades.
• Optimized Total Cost of Ownership (TCO): The cost of periodic maintenance is always lower than the cost of sudden repairs. PM helps reduce the frequency of replacing expensive Itema Air Jet Loom spare parts and avoids losses due to unexpected downtime.
• Maintained Pneumatic Efficiency: Regularly servicing valves and Nozzles helps reduce compressed air leakage, which in turn cuts down on the electricity costs for the air compressor—the largest operating expense of an air jet loom.

1.2. Classification of Spares by Maintenance Cycle

Itema Air Jet Loom spare parts can be divided into three groups based on maintenance priority:

Group	Component Examples	Maintenance Frequency	Rationale
A (Fast-Wearing)	Nozzles, Cutter Blades, Gaskets	Daily Inspection, Short Cycle Replacement (e.g., 6–12 months)	Direct contact with yarn/air, high friction.
B (Mechanical Load)	Cams, Bearings, Tucking Device components	Quarterly Inspection, Replacement based on picks (e.g., 2–3 years)	Subject to continuous mechanical stress.
C (Electronic/Structural)	PCBs, Sensors, Frame	Annual Inspection, Replace upon failure/upgrade	High replacement cost, critical control functions.

2. Detailed Maintenance Procedures for Weft Insertion and Pneumatic Systems

The Weft Insertion System and pneumatic components are the most complex areas and require the most stringent maintenance for Itema Air Jet Loom spare parts.

2.1. Nozzle Maintenance

The Nozzle is the fastest-wearing component and determines 70% of the weft insertion performance.

Daily Inspection:

• Visual Check: Ensure the Nozzle surface is free from yarn debris, wax, or chemical residue.
• Pressure Check: Verify that the compressed air pressure at the main and sub-Nozzles is within the target pressure limits specified by Itema.

Quarterly Maintenance:

• Ultrasonic Cleaning: Remove the main and sub-Nozzles, use specialized cleaning solution and an ultrasonic cleaner to remove deep-seated deposits.
• Wear Inspection: Use specialized measuring tools to check the diameter of the Nozzle bore. An enlarged bore due to friction reduces weft insertion efficiency and increases air consumption.

Nozzle Replacement Procedure:

1. Isolate the loom from compressed air and power sources.
2. Remove the fixing bolts and pull the old Nozzle out of the machine.
3. Install the new Itema Air Jet Loom spare part Nozzle, tightening the bolts to the specified torque to prevent damage to the gasket.
4. Perform pressure and timing calibration of the new Nozzle via the machine’s Human-Machine Interface (HMI).

2.2. Solenoid Valve Unit Maintenance

The Solenoid Valves control the timing and flow of compressed air.

Quarterly Inspection:

• Leakage Check: Use soapy foam solution or specialized flow meters to check for leaks at joints and valve seals. Valve leakage is the biggest single cause of energy waste.
• Response Time: Check the response speed of the pneumatic valve to the electrical signal from the PLC.

Solenoid Valve Replacement Procedure:

1. Identify the faulty valve by checking its electrical signal and response.
2. Bleed the compressed air from the valve system.
3. Remove the electrical control wires and air hoses.
4. Install the new Itema Air Jet Loom spare part valve, ensuring the O-rings and seals are tight. After installation, re-check the pressure and operating timing of the valve on the loom.

3. Maintenance for Cutting, Tucking, and Motion Control Mechanisms

Mechanical mechanisms under direct load must be checked for precision and adequately lubricated.

3.1. Cutter Blade Maintenance and Replacement

The Cutter Blade ensures a clean fabric selvedge. A dull blade increases yarn tension, causing weft breaks and selvedge defects.

Weekly Inspection:

• Sharpness: Use a magnifying glass to check the cutter blade for chipping or dullness.
• Clearance: Check the clearance between the fixed and movable cutter blades. Excessive clearance reduces cutting efficiency.

Cutter Blade Replacement Procedure:

1. Isolate the loom power, and secure the cutter unit.
2. Remove the old blade. Clean away any lodged yarn debris and dust.
3. Install the new Itema Air Jet Loom spare part cutter blade.
4. Adjust the cutting clearance according to specifications (typically very small, around 0.05–0.1 mm) using a dial gauge or specialized feeler gauge.

3.2. Tucking Device Maintenance

The Tucking Device ensures residual yarns are tucked into the fabric selvedge. This is a complex, high-friction mechanical component.

Monthly Inspection:

• Mechanical Wear: Check the gripper teeth and the cam controlling the tucking motion.
• Lubrication: Periodically lubricate the pivot points with specialized grease to reduce friction.
• Component Replacement: When the small gripper components are worn, replacing the entire tucking unit is often more optimal than repairing individual small parts. Choosing genuine Itema Air Jet Loom spare parts ensures the precision of this mechanism.

3.3. Cam, Belt, and Bearing Maintenance

These components provide the primary motion transmission for the weaving process.

• Cams and Cam Discs: Regularly check the Cam surfaces for wear or pitting due to friction. Annual maintenance includes checking alignment and lubrication.
• Belts and Gears: Check the tension of the drive belts. A slack belt reduces timing precision, affecting weaving speed and quality. Replace belts every 3–5 years.

4. Diagnosis and Troubleshooting of Common Itema Air Jet Loom Spare Parts Faults

Early fault diagnosis helps minimize losses and downtime.

4.1. Weft Stop Failure

• Symptom: The weft yarn breaks, but the machine fails to stop promptly, causing extended fabric defects.
• Root Cause: Faulty Weft Stop Sensor or weak Nozzle propulsion force.
• Fix:
  • Sensor: Clean the optical sensor or check its electrical signal. If the sensor is unresponsive, the Itema Air Jet Loom spare part sensor needs to be replaced.
  • Nozzle: Recalibrate the Nozzle pressure or replace the Nozzle if it is excessively worn.

4.2. Excessive Air Consumption

• Symptom: The air compressor runs continuously, or the weaving system pressure drops despite normal compressor operation.
• Root Cause: Air leakage. of leakage occurs at hose connections, valve seals, or worn Nozzles.
• Fix:
  • Valve: Use an Ultrasonic Leak Detector to pinpoint the leakage location. Focus on checking O-rings and hose fittings.
  • Nozzle: Replace worn Nozzles. Investing in pneumatic valve maintenance is the best way to reduce TCO.

4.3. Uneven Selvedge Irregularities

• Symptom: The fabric selvedge is loose, frayed, or not neatly tucked.
• Root Cause: Dull cutter blade or a worn/faulty tucking device.
• Fix:
  • Cutter: Replace the cutter blade and readjust the cutting clearance.
  • Tucking Device: Check the Tucking Timing on the HMI screen. If mechanical parts are worn, replacement of the Itema Air Jet Loom spare part tucking unit is required.

5. Strategy for Optimizing Itema Air Jet Loom Spare Parts Investment for SMEs

Spare parts procurement must be a strategic decision, especially for SMEs needing to optimize capital.

5.1. Prioritize OEM/Genuine Spares for Core Components

For parts that directly impact quality and productivity (Nozzles, control PCBs, Cams), SMEs should prioritize genuine or authorized OEM (Original Equipment Manufacturer) Itema Air Jet Loom spare parts.

• Pros: 100% compatibility, guaranteed durability and performance, minimizes the risk of sudden faults.
• Cons: Higher initial investment cost.

5.2. Spare Parts Inventory Management based on 80/20 Rule

Focus 80% of the maintenance budget on the 20% of the most critical and fast-wearing Itema Air Jet Loom spare parts (Nozzles, Seal Kits, Cutter Blades).

• Ready Stock: Always maintain minimum stock levels for these fast-wearing components to ensure near-zero downtime.
• Supply Contract: Establish long-term supply contracts with reputable Itema Air Jet Loom spare parts suppliers to ensure stable pricing and fast delivery for expensive components (like PCBs, main shafts).

6. Choosing a Supplier Partner for Itema Air Jet Loom Spare Parts

A supplier partner is not just a parts vendor but a strategic partner in maintaining loom performance.

6.1. Criteria for Selecting a Reputable Supplier

• Clear Origin: Ensure that the Itema Air Jet Loom spare parts supplied are genuine or OEM certified, with a commitment to quality and warranty period.
• Technical Support Services: The supplier must have a team of engineers knowledgeable about Itema looms to assist with on-site installation, calibration, and fault diagnosis.
• Response Time (Lead Time): The ability to quickly supply scarce or urgent spare parts (ideally within 48 hours) is a vital factor for a 24/7 mill.

7. Conclusion: Deep Maintenance is the Key to Itema Loom Performance

The process of maintaining and replacing Itema Air Jet Loom spare parts is complex yet essential technical operation. Correct investment in preventive maintenance for core components like Nozzles, Valves, and Cutters, combined with a smart procurement strategy (prioritizing OEM for critical spares) will help mills:

• Maximize the speed and weaving efficiency of the Itema loom.
• Significantly reduce operating costs (especially compressed air consumption).
• Extend equipment lifespan, ensuring stable export product quality.

VieTextile is a provider that offers comprehensive genuine Itema Air Jet Loom spare parts solutions along with specialized technical maintenance services, helping Vietnamese textile businesses maintain a competitive edge in the global market.

8. Frequently Asked Questions (FAQ) about Itema Air Jet Loom Spare Parts

Q1: Should I use OEM or high-quality aftermarket parts for my Itema Air Jet Loom? A1: You should use OEM Itema Air Jet Loom spare parts for core components that affect quality (such as Nozzles, PCBs, Cams). High-quality aftermarket parts can be considered for standard mechanical components (bearings, belts), provided the supplier has clear certification.

Q2: Why is the Nozzle the most expensive spare part to replace? A2: The Nozzle is more than just an air hole; it is a component machined to extremely high precision, directly impacting pneumatic efficiency and weft stability at high speeds. The cost of wear-resistant material and the precise machining process make the Nozzle the Itema Air Jet Loom spare part with the largest investment cost.

Q3: What is the optimal frequency for checking compressed air pressure? A3: Compressed air pressure for each Nozzle should be checked and calibrated at least once per week or after every change in yarn type. This periodic check helps detect early leaks and optimizes electricity costs.

9. VieTextile – Strategic Partner for Itema Air Jet Loom Spare Parts Supply

VieTextile is committed to being your strategic partner, specializing in genuine Itema Air Jet Loom spare parts solutions and specialized technical maintenance services:

• Genuine Products: Reliable sourcing of Itema Air Jet Loom spare parts, ensuring quality and operational lifespan.
• 24/7 Technical Support: A team of experienced engineers ready to assist with on-site diagnosis, installation, and calibration.
• Inventory Consulting: Support in building a spare parts inventory strategy based on the 80/20 principle to optimize capital for SMEs.

For detailed consultation on maintenance procedures and optimal Itema Air Jet Loom spare parts solutions, please contact us immediately:

Contact Information:

Hotline: 0901 809 309

Email: info@vietextile.com

Website: https://vietextile.com

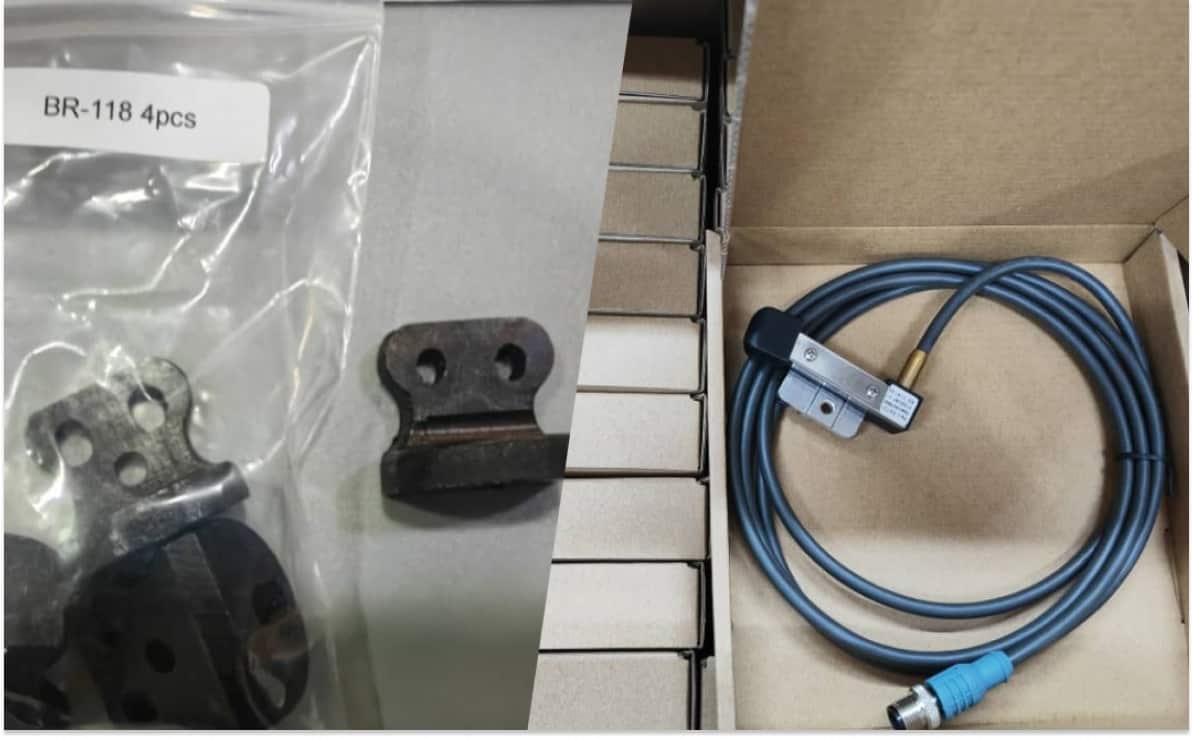

In the textile industry, the Toyota Air Jet Loom is considered the gold standard for speed, reliability, and operating efficiency. For Small and Medium-sized Enterprises (SMEs), operating and maintaining these complex machines poses a significant cost management challenge. Spare parts investment is not just an expense but a strategic decision that directly impacts the Total Cost of Ownership (TCO) and market competitiveness.

This in-depth analysis by VieTextile aims to provide a comprehensive view of the investment cost structure, analyze high-wear components, and propose budget optimization strategies for purchasing Toyota Air Jet Loom spare parts. Understanding the lifespan, origin, and impact of each component will help SMEs make smart investment decisions, maintain production quality, and minimize the risk of sudden machine downtime.

1. Analysis of High-Cost Toyota Air Jet Loom Spare Parts

The investment cost for Toyota Air Jet Loom spare parts is not uniform; it is concentrated in components with high operational intensity, direct contact with yarn, or subject to significant mechanical/pneumatic stress.

1.1. Weft Insertion and Pneumatic Control Components (Nozzles and Valve Units)

These components are the heart of the air jet weaving system and account for the largest proportion of cost in the wear parts category.

• Main Nozzle: Responsible for generating the primary air stream that propels the weft yarn. This is one of the fastest-wearing components due to constant friction with the yarn and continuous air pressure. The quality and precision of this Toyota Air Jet Loom spare part determine the speed and stability of the weaving process.
• Sub-Nozzles: Generate supplementary air streams along the fabric width. Replacing sub-nozzles must follow a strict cycle to ensure uniform propelling force and prevent selvedge defects.
• Pneumatic Valves and Regulators: Solenoid valves manage the opening/closing timing of the compressed air. Valve faults cause huge compressed air waste and incorrect weft insertion timing, leading to fabric defects. The initial investment cost for these valve units is high, but their impact on energy costs is the most substantial.

1.2. Cutting and Tucking Devices (Cutters and Tucking Devices)

These mechanisms endure continuous mechanical load and impact, directly affecting the quality of the fabric selvedge.

• Cutter Blade: The blade requires high sharpness and hardness to ensure a clean yarn cut. Genuine Toyota Air Jet Loom spare parts guarantee a longer lifespan and reduce replacement frequency. A dull cutter blade is the main cause of selvedge defects and yarn breakage.
• Tucking Device: Mechanically complex, this device creates a stable fabric selvedge. Maintenance and replacement of small internal components within the tucking unit require high technical skill, and component costs are not low.

1.3. Electronic Components and Sensors (Sensors and PCB Boards)

Though not subject to physical wear like mechanical parts, electronic components have very high replacement costs when sudden failures occur.

• Warp/Weft Stop Motion Sensors: These optical or inductive sensors ensure the machine stops immediately upon yarn breakage. The cost of genuine Toyota sensors is high, but their precision and reaction speed are irreplaceable, minimizing machine damage during an incident.
• PCB Boards: Complex control boards (such as the Weft Insertion Controller) have a substantial replacement cost. Although failures are rare, they are mandatory inventory items for continuous operation.

2. Investment Cost Structure for Small and Medium Weaving Mills

For SMEs, managing the cost of Toyota Air Jet Loom spare parts must be viewed through the lens of TCO, not just the initial purchase price.

2.1. Initial Purchase Cost (IPC)

IPC is the total value of spare parts purchased. SMEs often make the mistake of reducing IPC by choosing non-genuine or low-quality parts.

• Prioritize Critical Parts: List essential Toyota Air Jet Loom spare parts that require stocking (like Nozzles, Cutter Blades) and ensure they are genuine or OEM. These costs should be factored into the periodic maintenance budget.
• Initial Inventory Cost: A small weaving mill needs to stock spare parts valued at 10% to 15% of the machine’s total value to ensure stable operation for 3 to 6 months. This initial investment cannot be eliminated.

2.2. Total Cost of Ownership (TCO)

TCO is the most accurate economic measure, encompassing the IPC plus operating costs, maintenance costs, and losses due to downtime over the lifespan of the spare part.

TCO=IPC+∑(Installation Cost)+∑(Operating Cost)+∑(Downtime/Loss Cost)

• Genuine (OEM) Toyota Parts: Higher IPC, but operating costs (reduced air consumption, reduced waste) and downtime costs are near zero during the warranty period, leading to a lower TCO in the long run.
• Low-Quality Parts: Low IPC, but operating costs skyrocket (air consumption , waste +5%), making the TCO significantly higher.

Investing in high-quality Toyota Air Jet Loom spare parts optimizes TCO for SMEs.

2.3. Budget Allocation based on 80/20 Principle (Inventory Strategy)

The 80/20 principle in spare parts management suggests that 80% of downtime issues or quality defects arise from 20% of the fastest-wearing and most critical parts (like Nozzles, Cutters).

• Allocate 80% of the budget to 20% of essential spares: Prioritize purchasing genuine Toyota Air Jet Loom spare parts for these components.
• Low-Cost Backup Spares: For less critical components (e.g., plastic details, screws), high-quality alternative solutions can be considered.

3. Strategies for Optimizing Toyota Air Jet Loom Spare Parts Costs

To optimize the budget for SMEs, smart procurement and maintenance management strategies must be applied.

3.1. Inventory Management based on Life Cycle

Avoid excessive stocking; instead, base inventory on the estimated lifespan (MTBF – Mean Time Between Failures) of each spare part.

• Demand Forecasting: Accurately track the operating time of critical components like Nozzles and valves. Create a wear chart and forecast replacement times before sudden failure occurs.
• Batch Replacement: When replacing a cluster of Toyota Air Jet Loom spare parts (e.g., sub-nozzles), they should be replaced in batches rather than individually to ensure consistency in pneumatic performance.

3.2. Choosing Between OEM and High-Quality Aftermarket Parts

This is the most challenging decision for SMEs.

• Genuine (OEM) Toyota Parts: Ensure 100% compatibility, maximum performance, and the longest lifespan. However, the price is high. SMEs should use OEM for core components (Main Nozzle, control PCBs).
• High-Quality Replacement Parts (Aftermarket): Produced by reputable suppliers, these can be 30%-50% lower in price than OEM. Suitable for standard mechanical parts (belts, bearings, certain yarn clamps).

This decision must be accompanied by selecting a reputable supplier of Toyota Air Jet Loom spare parts with clear quality certifications.

3.3. Leveraging Maintenance and Technical Consulting Services

SMEs often lack specialized air jet loom engineers. Utilizing support services from spare parts suppliers is a way to reduce hidden costs.

• Periodic Maintenance Contracts: Engineers from the Toyota Air Jet Loom spare parts supplier will help inspect and calibrate valves and sensors, and optimize air pressure. This significantly reduces energy consumption costs and extends the parts’ lifespan.
• Training Programs: Train in-house technicians on early fault diagnosis and basic Toyota Air Jet Loom spare parts replacement, reducing dependence on external engineers.

4. Evaluating the Economic Benefit (ROI) of Quality Spare Parts Investment

Investing in quality Toyota Air Jet Loom spare parts is not an expense but a high-return investment (ROI).

4.1. Downtime Reduction

Downtime is the greatest loss. Quality spare parts help extend the Mean Time Between Failures (MTBF) of the machine.

• Specific Example: The cost of 1 hour of downtime for a Toyota Air Jet Loom can be up to $200 (including labor costs, depreciation, and lost revenue opportunity). If low-quality parts cause 10 hours of downtime/month, the loss is $2,000/month. An investment of an extra $500/month in quality Toyota Air Jet Loom spare parts is a sound decision.

4.2. Improved Fabric Quality and Waste Reduction

High-quality components ensure precise weaving, minimizing waste.

• Nozzle Precision: Genuine Nozzles ensure standard spray angle and air flow, reducing weft faults and selvedge defects. Reducing the waste rate by 1% can increase profits by tens of thousands of USD annually.
• Accurate Sensors: Precise warp stop motion sensors ensure the machine stops instantly, minimizing the length of defective fabric and optimizing raw material usage.

4.3. Energy and Compressed Air Savings

Air jet weaving systems consume enormous amounts of compressed air. Selecting quality Toyota Air Jet Loom spare parts significantly impacts this cost.

• High-Efficiency Valves and Nozzles: OEM parts are designed to optimize air flow, minimize leakage, and reduce the required working pressure, thereby lowering electricity costs for the air compressor. This creates sustainable environmental and economic benefits.

5. Frequently Asked Questions (FAQ) about Toyota Air Jet Loom Spare Parts

Q1: Are Toyota Air Jet Loom spare parts more expensive than those for Picanol or Tsudakoma looms? A1: Toyota Air Jet Loom spare parts are generally competitively priced in the premium segment, reflecting the superior precision and longevity of the equipment. While the initial purchase price may be higher than some other brands, the durability and optimized air consumption efficiency often lead to a significantly lower TCO (Total Cost of Ownership) in the long term.

Q2: When should the Main Nozzle of a Toyota Air Jet Loom be replaced? A2: The replacement time for the Main Nozzle is not fixed but is based on the number of picks, yarn type, and air pressure. Typically, genuine Main Nozzles should be inspected or replaced after approximately 8 to 12 million picks. Mills should use management software to track this precisely.

Q3: Should SMEs stock expensive control boards (PCBs)? A3: Stocking control boards (PCBs) is not mandatory for small mills. Instead, they should contract with a reputable supplier of Toyota Air Jet Loom spare parts (like VieTextile) to ensure rapid delivery and installation of replacement boards (Emergency Replacement Service), ideally within 24–48 hours.

6. VieTextile – Strategic Partner for Toyota Air Jet Loom Spare Parts Supply

VieTextile is a pioneer in supplying genuine Toyota Air Jet Loom spare parts and high-quality replacement parts, helping SMEs optimize performance and investment costs.

We commit to:

• Certified Quality: All Toyota Air Jet Loom spare parts supplied have clear origins, meeting strict technical standards to extend operational lifespan.
• TCO Consultation: Our experienced engineers assist with TCO cost analysis, helping you select the right parts to prioritize investment in, avoiding waste.
• Professional Maintenance Service: Provide maintenance, nozzle calibration, and compressed air optimization services, reducing operating costs for customers.

Contact us now for detailed consultation on Toyota Air Jet Loom spare parts solutions and investment cost optimization:

Hotline: 0901 809 309

Email: info@vietextile.com

Website: https://vietextile.com

Jacquard looms are the centerpieces of factories weaving high-end patterned fabrics, towels, or carpets. The complexity of the harness system, hooks, and control boards demands that components achieve absolute mechanical and electronic precision. In the context of optimizing production costs, large weaving factories in Vietnam often face a critical question: should they choose locally produced Jacquard components (domestic/OEM Equivalent) or rely entirely on original equipment manufacturer (OEM) imported components?

This decision not only affects the initial procurement cost but also directly impacts operational lifespan, maintenance frequency, and the Total Cost of Ownership (TCO) of the loom. The correct Supply of Jacquard Loom Components is key to maintaining stability, product quality, and competitiveness.

This in-depth analysis will conduct a comprehensive comparison of the technical and economic factors between these two groups of components, helping managers make optimal procurement and risk management decisions, while emphasizing the importance of high-quality Supply of Jacquard Loom Components service.

1. Classification of Critical Jacquard Loom Components

A Jacquard loom is composed of thousands of precisely synchronized parts. These components can be divided into three main groups, each with different quality standards and replacement frequencies. The process of Supply of Jacquard Loom Components must accommodate this diversity.

1.1. High-Friction Mechanical Components

These are components subjected to continuous load and friction, determining the accuracy of the woven pattern:

• Hooks and Knives: Responsible for raising and lowering the needles according to the pattern signal. They require high-wear-resistant steel (hardened steel) material and absolute geometric precision. These are staple items in the operation of Supply of Jacquard Loom Components.
• Harness Boards: Subjected to load and friction from the warp threads. They are typically made from composite material or specialized plywood.
• Transmission Parts: Including couplings, timing belts, and gears, ensuring synchronized movement from the loom to the Jacquard head.

1.2. Electronic and Control Components

These determine the speed and reliability of pattern programming:

• Controller Boards: Receive and process weaving pattern data. This is the most complex and sensitive component.
• Solenoids/Magnets: The core component of the Jacquard, converting electronic signals into mechanical movement to lift the needles. The quality of the magnet determines the speed and durability of the Jacquard head.
• Position Sensors (Encoders/Sensors): Ensure synchronization between the Jacquard head and the main loom.

1.3. Auxiliary and Support Components

• Pneumatic Parts: Including solenoid valves and air filters, ensuring a clean operating environment and stable pressure.
• Lubrication System: Oil pumps, oil lines, and nozzles.

2. Analysis of Original Equipment Manufacturer (OEM) Imported Components

OEM components are manufactured by the loom manufacturer (Staubli, Bonas, Dornier, Itema) or their exclusively authorized partners. This is the standard source for all official Supply of Jacquard Loom Components services.

2.1. Absolute Advantages of OEM Components

• Perfect Fit: Components are designed and manufactured within the exact tolerances of the machine, ensuring easy installation and immediate synchronized operation.
• Highest Operational Lifespan: OEM components use premium, tested materials (special alloy steel, specialized electronic components), resulting in an operational lifespan that meets or nearly meets 100% of the original machine design. For example, an OEM solenoid might achieve a 10-year lifespan under 24/7 operation.
• Warranty and Technical Support: Comes with a clear warranty policy and direct technical support from the manufacturer.
• Reduced Collateral Damage: High precision reduces vibration, friction, and cascading failures, protecting other expensive machine components, affirming the long-term value of a genuine Supply of Jacquard Loom Components.

2.2. Main Disadvantages

• High Cost: The cost of OEM components is significantly higher, sometimes 2 to 5 times more than domestic or OEM Equivalent alternatives.
• Long Lead Time: Due to importation from Europe or Japan, the waiting time can extend from 4 to 12 weeks, posing a risk of prolonged machine downtime if the factory lacks safety stock. This is the biggest barrier when choosing the overseas Supply of Jacquard Loom Components.
• Customs/Import Taxes: Incurs complex logistics, tax, and customs procedures.

3. Analysis of Domestic Components (OEM Equivalent/Replacements)

Domestic or high-quality replacement components (OEM Equivalent) are products manufactured by third-party companies, often in Vietnam, China, or Taiwan, aiming for quality comparable to OEM but at a more competitive price.

3.1. Outstanding Advantages

• Lower Cost: The biggest advantage is a 30%–70% reduction in initial procurement cost compared to OEM. This is an attractive option for small and medium-sized processing workshops, especially when they seek cost-effective Supply of Jacquard Loom Components services.
• Fast Response Time: Domestic providers of Supply of Jacquard Loom Components often have large, ready stock, meeting emergency replacement needs within 24–48 hours.
• Quick Technical Support: Easier access to on-site technical support and installation from the domestic supplier.

3.2. Disadvantages and Potential Risks

• Operational Lifespan: The average lifespan of good-quality domestic components typically only reaches 60%–80% of OEM components. For sensitive electronic parts, the difference can be greater.
  • Example: If an OEM hook has a lifespan of 10,000 hours, a high-quality domestic hook might only reach 6,000–8,000 hours.
• Mechanical Precision: The tolerance might be slightly larger, though still within an acceptable range. This can cause increased friction and slight vibration after installation. Therefore, the replacement Supply of Jacquard Loom Components must be strictly controlled.
• Consistency: Quality between batches may not be as uniform as OEM due to less stringent Quality Control (QC) processes. This risk must be considered in every decision regarding the Supply of Jacquard Loom Components.
• Risk of Poor Quality Goods: The market is mixed with cheap counterfeits, using inferior materials (soft steel, non-heat-resistant electronic components), leading to premature failure and damaging surrounding components. One should only partner with reputable providers of Supply of Jacquard Loom Components.

4. Comparison of Jacquard Component Lifespan and TCO

The comparison should not solely be based on the initial purchase price but on the Total Cost of Ownership (TCO).

4.1. Lifespan and Replacement Frequency Analysis

Component Type	OEM Standard (Est. Lifespan)	High-Quality Domestic (Est. Lifespan)	Replacement Frequency (Comparison)
Hooks	8,000–12,000 operational hours	6,000–8,000 operational hours	Domestic replaced 20%–50% more often
Solenoids	10 years (24/7)	5–8 years (24/7)	Domestic replaced 25%–100% more often
Controller Boards	10–15 years	7–10 years	Higher risk of sudden failure
Timing Belts	15,000–20,000 hours	10,000–15,000 hours	Domestic replaced 33%–50% more often

This comparison table serves as the basis for evaluating the cost-effectiveness of the Supply of Jacquard Loom Components operation.

4.2. TCO Analysis (Total Cost of Ownership)

TCO is calculated by the formula:

TCO=Initial Purchase Cost+Installation Cost+Maintenance Cost+Downtime Cost

Material procurement cost is a crucial part, but the Supply of Jacquard Loom Components service also includes downtime costs resulting from component quality.

• Scenario 1: Prioritize Initial Cost (Domestic Components):
  • Benefits: Low procurement cost, good cash flow.
  • Risks: High downtime costs due to higher failure frequency, increased maintenance labor costs due to frequent replacement, high risk of fabric defects. TCO might exceed OEM in the long run (5 years) if material quality is substandard.
• Scenario 2: Prioritize Lifespan (OEM Components):
  • Benefits: Long lifespan, absolute operational reliability, low maintenance and downtime costs. This demonstrates the long-term value of high-quality Supply of Jacquard Loom Components.

4.3. Evaluation of Fabric Defect Risk

For Jacquard looms, fabric defects caused by components represent the biggest economic risk. Prematurely worn domestic solenoids or hooks not only reduce their own lifespan but also cause pattern errors, decreasing the value of the entire fabric roll. OEM components, thanks to their high precision, minimize fabric defect risk due to mechanical factors.

5. Optimal Component Selection Strategy for Weaving Factories

Weaving factories should adopt a hybrid strategy based on the criticality of each component type.

5.1. Selection Principle Based on Strategic Position

• Group A Components (Critical – OEM Mandatory):
  • Controller Boards and Solenoids: The most sensitive and expensive components. Errors here cause systemic failure. Prioritize OEM or OEM Equivalent from the most reputable manufacturer.
  • Jacquard Cylinder: The factor determining the precision of movement.
• Group B Components (Semi-Critical – Consider High-Quality OEM Equivalent):
  • Hooks and Knives: If a domestic/Taiwanese provider of Supply of Jacquard Loom Components with equivalent heat-resistant steel material can be found, they can be used for cost savings.
  • Yarn Stop/Position Sensors: Carefully check reliability and response speed.
• Group C Components (Consumables – Prioritize Domestic/Best Price):
  • Harness Boards, Harness Cords, Guide Wires, Gaskets, Oil Seals: Auxiliary components where procurement cost is the priority, provided they meet basic mechanical durability requirements. The quality of the Supply of Jacquard Loom Components for this group determines cost efficiency.

5.2. Criteria for Evaluating Domestic Component Suppliers

When deciding to use domestic components, factories must set strict standards for the provider of Supply of Jacquard Loom Components:

• Material Certification: Require steel material certificates (e.g., SKD11 or HSS steel certificates) for hooks and knives. This helps ensure quality from the provider of Supply of Jacquard Loom Components.
• Actual Warranty: Demand a clear warranty commitment on operational lifespan (e.g., 1-year or 5,000-hour operational warranty for mechanical components). The Supply of Jacquard Loom Components process must come with clear quality commitments.
• Technical Inspection (QC/QA): Require the supplier to allow random batch inspection using precise measuring equipment (micrometer, material hardness testing tools) before warehousing.

6. Strategic Sourcing for Supply of Jacquard Loom Components

To effectively manage the Supply of Jacquard Loom Components, weaving factories should establish a partnership with a professional unit capable of meeting both criteria: providing genuine OEM when necessary and high-quality OEM Equivalent for fast-moving consumables.

6.1. Ensuring Business Continuity

• Emergency Spare Stock: The supplier needs a domestic inventory of the most critical components (like solenoids, hooks) to respond within 24 hours. This is a crucial part of a comprehensive Supply of Jacquard Loom Components service.
• Safe Transportation Capability: Jacquard components are highly sensitive. Transportation must involve professional anti-shock, anti-humidity, and anti-static packaging.

6.2. Technical Upgrade Consultation

A reputable provider of Supply of Jacquard Loom Components does not just sell goods but also advises on upgrade solutions:

• Upgraded Components: Introduction of newer-generation hooks or more energy-efficient solenoids with higher performance than the original machine design. This is the added value of a professional Supply of Jacquard Loom Components service.
• Installation and Calibration Support: Dispatching specialized engineers to assist with the installation of complex components like controller boards or the Jacquard head. VieTextile is a leading provider of Supply of Jacquard Loom Components that delivers this.

7. Conclusion: Optimizing TCO and Weaving Quality

The decision between domestic and imported Jacquard components is a complex calculation, requiring a balance between Initial Cost and Service Life. While imported OEM components offer superior reliability and lifespan, high-quality domestic components are the optimal solution for reducing lead time and short-term costs, especially for fast-moving consumables.

The most effective strategy is to adopt a Risk-Based Sourcing approach: use OEM for Group A (critical) components and seek reputable providers of Supply of Jacquard Loom Components to purchase high-quality OEM Equivalent components for Groups B and C, aiming to optimize the overall TCO and maintain Jacquard fabric weaving quality at the highest level.

8. Frequently Asked Questions (FAQ) About Jacquard Loom Components

Q1: What are the common causes of Jacquard solenoid failure? A1: Solenoids typically fail due to two main reasons:

• Overheating: Caused by continuous 24/7 machine operation and high ambient temperatures, damaging the coil’s insulation.
• Overload: Caused by unstable power supply or mechanical faults that cause sudden voltage surges.

Q2: Can domestic components replace OEM controller boards? A2: Replacing controller boards with domestic components is extremely risky. OEM boards are programmed with proprietary software and have very tight electronic tolerances. If replacement is mandatory, one should seek specialized board repair/refurbishment units or purchase OEM Equivalent boards certified by large companies.

Q3: Can Jacquard components be used for different machine types? A3: Absolutely not. Each brand and machine series (e.g., Jacquard M5 vs. M6, or Bonas vs. Staubli) has different dimensions, tolerances, and electronic specifications. Using the wrong Supply of Jacquard Loom Components can cause needle jams, circuit burnout, and serious damage to the loom head. The Supply of Jacquard Loom Components must be checked for technical compatibility.

9. VieTextile – Strategic Partner for Genuine Supply of Jacquard Loom Components

VieTextile is a trusted partner, specializing in comprehensive Supply of Jacquard Loom Components solutions for the high-end textile industry. We are committed to providing flexible choices, ensuring quality, and minimizing TCO for your business:

• Genuine OEM Components: Supplying components from world-leading manufacturers with full CO/CQ certificates.
• High-Quality Replacement Components (OEM Equivalent): Ensuring near-absolute lifespan and precision, especially for consumables like hooks and knives.
• In-depth Technical Support: A team of experienced engineers provides on-site installation, calibration, and Jacquard troubleshooting support.

Contact VieTextile for consultation and the most optimal Supply of Jacquard Loom Components solution:

Hotline: 0901 809 309

Email: info@vietextile.com

Website: https://vietextile.com
