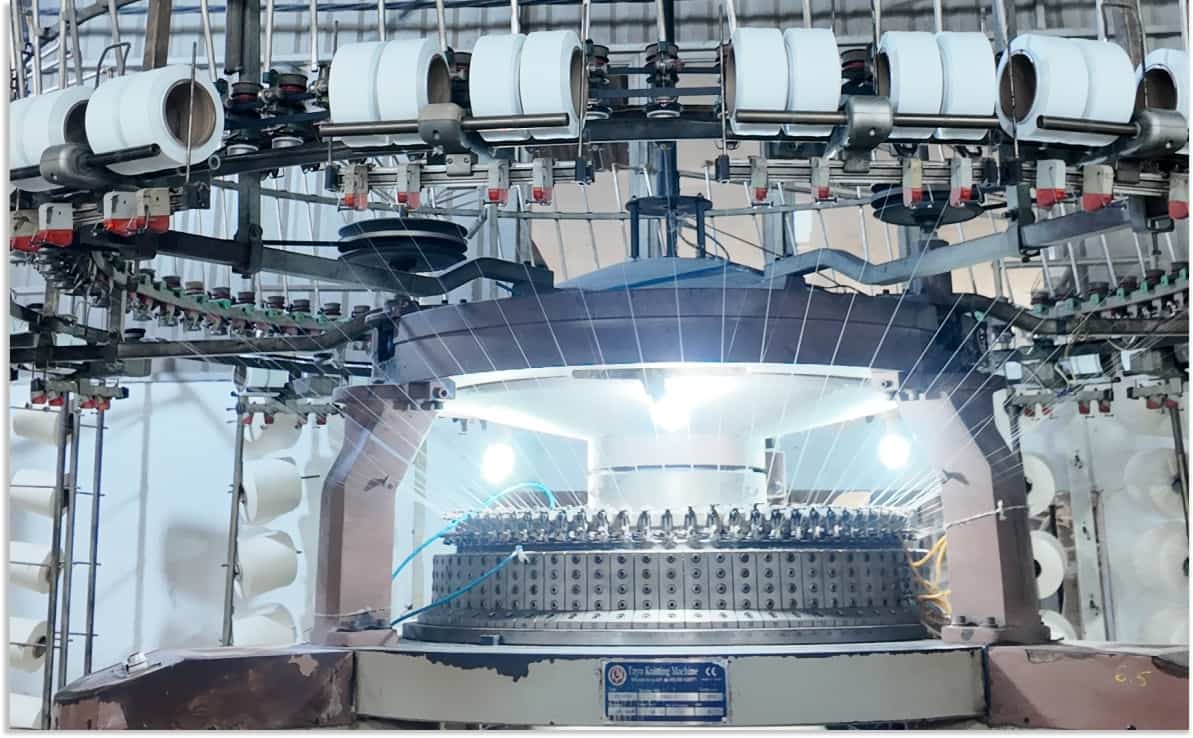

In the global textile supply chain, export manufacturing factories serve as the backbone, demanding that machinery operates continuously at peak performance. Any disruption in the weaving process, no matter how minor, can impact delivery schedules and international reputation. Therefore, Supplying Textile Loom Spare Parts high-quality, timely, and reliable is a decisive factor in the success of an export factory.

The selection of Textile Loom Spare Parts is not merely about finding replacement components; it is a strategic approach to risk management and operational optimization. This article will delve into the technical criteria, inventory strategies, and the challenges that export textile mills face when seeking a stable and high-quality supply source for Textile Loom Spare Parts.

1. Stringent Requirements for Textile Loom Spare Parts in Export Production

Export textile factories, especially those working with major global brands, must comply with superior quality and performance standards. Textile Loom Spare Parts must meet the following essential criteria.

Textile Loom Spare Parts are a key factor in ensuring production quality and speed.

1.1. Superior Durability Standards

• High Load Resistance: Modern looms (such as high-speed air-jet and rapier looms) operate at very high frequencies (from 500 to 2,000 Picks Per Minute). Textile Loom Spare Parts, especially moving parts like rapier tapes, nozzles, or weaving needles, must withstand continuous dynamic load and wear.
• Specialized Materials: Quality Textile Loom Spare Parts must be manufactured from specialized materials, such as Tool Steel, Titanium alloys, or engineering Ceramics for yarn guiding parts, ensuring optimal lifespan.

1.2. Absolute Precision (Tolerance)

• Technical Tolerance: The precision of Textile Loom Spare Parts must fall within a very narrow tolerance range (often micron). Small deviations can lead to vibration, yarn breakage, pattern defects, or damage to other related components.
• Perfect Compatibility: Export factories typically use high-end machinery (Picanol, Tsudakoma, Sulzer, Dornier). The process of Supplying Textile Loom Spare Parts must ensure compatibility with the machine’s technical specifications (OEM standard) to avoid performance reduction.

1.3. Continuous Operation Capability

• Minimizing Downtime: For export orders with strict deadlines, downtime caused by Textile Loom Spare Parts failure is a major loss. Spare parts must have high reliability to ensure 24/7 operation.
• Optimizing Productivity (OEE): Quality Textile Loom Spare Parts help the machine maintain maximum weaving speed and reduce the End Breakage Rate, thereby optimizing Overall Equipment Effectiveness (OEE).

2. Core Textile Loom Spare Parts That Require Supply Priority

Export textile factories need a clear strategy for prioritizing the supply of spare parts for components that are subject to high wear and are critical to quality.

2.1. Weft Insertion System Spare Parts

These components bear the highest dynamic load and wear:

• Rapier Looms: Rapier tape, rapier head, and rapier band. These Textile Loom Spare Parts must have high hardness and resilience.
• Air-jet Looms: Main Nozzle, Relay Nozzle, and the air valve system. The precision of the nozzles determines air consumption efficiency and insertion speed.
• Shuttle Looms: Shuttle components, Picking Mechanism details.

2.2. Shedding System Spare Parts

• Heald Frame: Heald frames, Heald Wires, and guide bars. Requirements include being lightweight, having good friction resistance, and high stiffness to create a sharp shed opening.

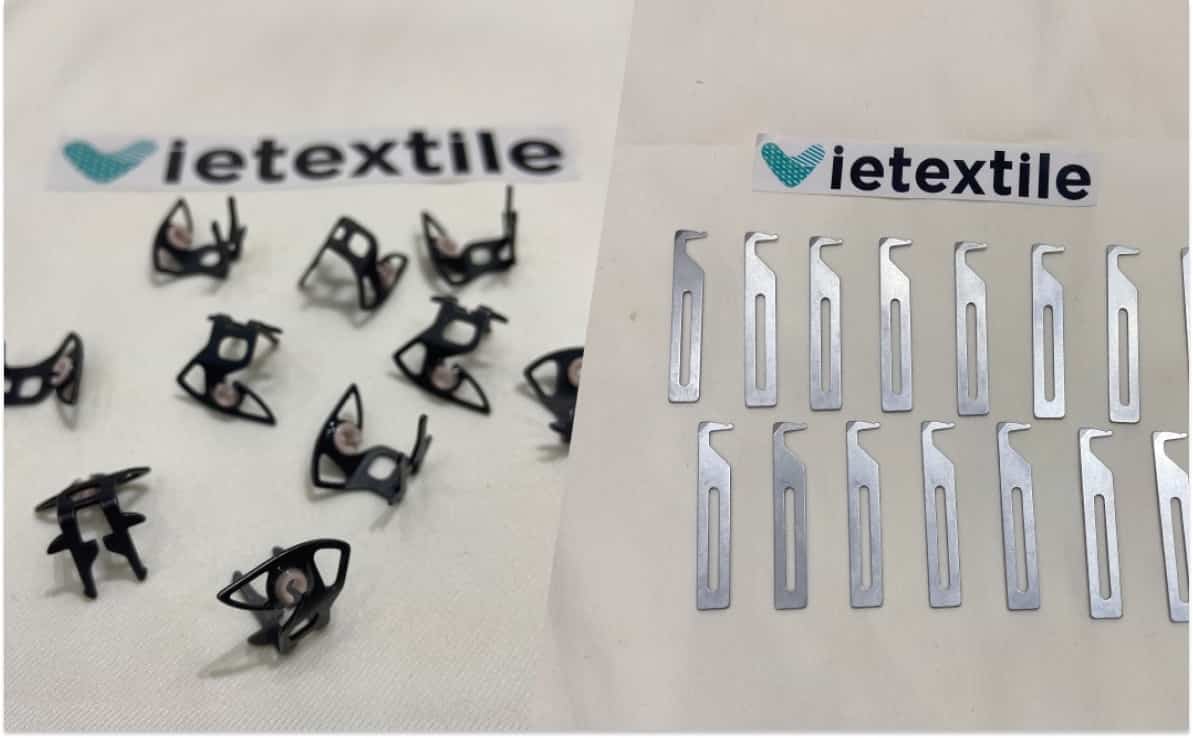

• Shedding Motion (Dobby/Jacquard): Hooks, needles, and knife blades of the Dobby/Jacquard head. These Textile Loom Spare Parts demand extremely high mechanical precision.

2.3. Beating-up System Spare Parts

• Reed: The Reed must be clean, without wear or warping, to ensure the weft thread is uniformly beaten up against the Fell of the Cloth.

3. Inventory Management and Textile Loom Spare Parts Supply Chain Strategy

For export factories, the strategy for Supplying Textile Loom Spare Parts cannot be reactive but must be Proactive Inventory Management.

Optimal inventory management reduces storage costs while ensuring zero downtime.

3.1. Priority Analysis (ABC Analysis)

• Group A (Critical Spares): Textile Loom Spare Parts that fail frequently and cause serious machine downtime (e.g., certain weaving needles, nozzles). The highest safety stock level must be maintained.
• Group B (Semi-critical Spares): Textile Loom Spare Parts that may fail but do not cause immediate downtime or can be replaced during maintenance shifts (e.g., certain drive belts, bearings).
• Group C (Low-risk Spares): Textile Loom Spare Parts with a very long lifespan or those readily available in the market.

3.2. Lead Time and Supplier Partnership

• Local Textile Loom Spare Parts Supplier: Partnering with domestic suppliers like VieTextile helps shorten the Lead Time from several weeks (direct import) to just a few days or hours.
• Long-term Contracts: Signing long-term Textile Loom Spare Parts supply contracts ensures a stable supply, preferential pricing, and a committed Service Level Agreement (SLA) for delivery time.

3.3. Leveraging Inventory Management Technology

• ERP/CMMS Systems: Using Asset and Maintenance Management software (CMMS) to track the lifecycle of each Textile Loom Spare Part, predicting replacement timing based on Run Hours rather than just fixed schedules.

4. Quality Control and Counterfeit Risk of Textile Loom Spare Parts

The biggest challenge for export factories is ensuring the quality of Supplying Textile Loom Spare Parts, especially when choosing OEM/Aftermarket components to optimize costs.

Counterfeit, poor-quality Textile Loom Spare Parts are the leading cause of production line damage.

4.1. Distinguishing Genuine (OEM) and Replacement (Aftermarket) Parts

• OEM (Original Equipment Manufacturer): Parts supplied by the loom manufacturer itself. Highest price, but guarantees absolute quality.
• High-Quality OEM/Aftermarket: Textile Loom Spare Parts produced by specialized companies, using equivalent materials and processes to OEM. This is the optimal solution balancing cost and quality.
• Counterfeit/Poor Quality: Substandard materials, wide tolerances, lacking CO/CQ certificates. Using this type of Textile Loom Spare Parts can damage parent components and void the machine’s warranty.

4.2. Incoming Quality Control (IQC) Procedure

Factories need to establish a strict IQC procedure for Textile Loom Spare Parts:

• Material Testing: Request the Material Certificate from the Textile Loom Spare Parts supplier.
• Dimensional Measurement: Use digital calipers, Micrometers, and specialized measuring tools to check the size and tolerance of new Textile Loom Spare Parts.
• Hardness Testing: For metal parts like rapier heads, surface hardness should be checked using Rockwell or Vickers hardness testers.

4.3. The Role of CO/CQ Certificates

Every batch of Textile Loom Spare Parts supplied must be accompanied by full Certificate of Origin (CO) and Certificate of Quality (CQ). This is legal and technical proof ensuring product transparency, which is vital in the export process.

5. Optimizing Operating Costs Through Smart Textile Loom Spare Parts Supply

Export factories should view the cost of Textile Loom Spare Parts as an investment, not a burden. The goal is to reduce the Total Cost of Ownership (TCO).

Quality Textile Loom Spare Parts are a tool for long-term operational cost reduction.

5.1. Reducing Corrective Maintenance Costs

• Choosing Long Lifespan: Investing in Textile Loom Spare Parts with a longer lifespan (even if the initial cost is higher) reduces the replacement frequency, thereby reducing labor costs and downtime costs.
• Enhancing Preventive Maintenance: Utilizing periodic maintenance Textile Loom Spare Parts kits suggested by the supplier, replacing components before they fail completely.

5.2. Reducing Cost of Poor Quality (COPQ)

• Reducing Fabric Defect Rate: Accurately operating Textile Loom Spare Parts (especially nozzles, rapier tapes) helps ensure uniform weft tension and precise beat-up, minimizing weaving defects like weft faults, warp faults, or pattern defects, thus reducing the Scrap Rate.
• Avoiding Contract Penalties: Export factories can face heavy penalties if they fail to meet fabric quality standards or delay delivery. A stable Supplying Textile Loom Spare Parts flow minimizes this risk.

5.3. Energy Savings

• Reducing Mechanical Friction: Worn Textile Loom Spare Parts increase friction and resistance, forcing the motor to work harder. Timely replacement of Textile Loom Spare Parts, especially Bearings and bushings, helps reduce power consumption.
• Optimizing Compressed Air (Air-jet Looms): Worn or leaking air nozzles significantly increase the amount of compressed air needed to insert the weft, leading to higher electricity costs for the air compressor.

6. VieTextile – Leading Textile Loom Spare Parts Supplier for Export

VieTextile understands the stringent demands and operational strategy of export manufacturing factories. We are committed to Supplying Textile Loom Spare Parts with international standard quality, ensuring stability and maximum performance for your production line.

We provide comprehensive solutions from components to in-depth technical support.

6.1. Diversified Supply of High-Quality Textile Loom Spare Parts

• Famous Loom Brands: We specialize in Supplying Textile Loom Spare Parts for world-leading brands like Picanol (OptiMax-i, Rapier, Air-jet), Tsudakoma (ZAX Series), Toyota (JAT Series), Sulzer, Dornier, etc.
• Core Components: We focus on critical Textile Loom Spare Parts with limited lifespan and major impact on quality, such as rapier tapes, rapier heads, nozzles, electronic components, and sensors.

6.2. Quality Control and Source Transparency

• Commitment to High-Grade OEM/Aftermarket Quality: Textile Loom Spare Parts supplied by VieTextile are manufactured from high wear-resistant materials, meeting strict technical tolerance standards.
• CO/CQ Documentation Support: We provide full Certificate of Origin and Quality for every batch, ensuring legality and transparency during import and use.

6.3. After-sales and In-Depth Technical Solutions

• Fast Supply Time: With a strategic stock reserve, VieTextile ensures rapid Textile Loom Spare Parts delivery, minimizing downtime for export factories.
• Professional Technical Consultation: Our engineering team is ready to assist with material selection, installation procedures, and loom performance optimization, helping you extend the lifespan of your Textile Loom Spare Parts.
• Clear Warranty Policy: We apply a clear warranty policy, giving customers absolute peace of mind regarding the quality of the Textile Loom Spare Parts being supplied.

7. Frequently Asked Questions (FAQ) About Textile Loom Spare Parts Supply

Q1: How do OEM and Aftermarket Textile Loom Spare Parts differ in terms of lifespan? A1: OEM Loom Spare Parts generally have the longest lifespan as they are designed to be fully synchronized with the machine. However, high-quality Aftermarket parts (like those from VieTextile) can achieve 90−95% of the OEM lifespan at a significantly lower cost, making them an economical choice for many factories.

Q2: How can I distinguish high-quality Textile Loom Spare Parts from counterfeits? A2: High-quality goods will have a smooth machined surface, no material defects, and accurate weight and dimensions. Most importantly, they must have a Certificate of Quality (CQ) and be supplied by a reputable distributor with a warranty.

Q3: Which types of Textile Loom Spare Parts should I prioritize stocking? A3: The highest priority should be given to wear-prone parts that cause prolonged downtime if they fail, e.g., weaving needles, nozzles, rapier heads, thread sensors, and critical electronic components.

Q4: Does VieTextile support installation of Textile Loom Spare Parts? A4: Yes, we not only supply Textile Loom Spare Parts but also have a professional technical team to assist with installation consultation, calibration (especially for complex parts like air nozzles, rapier heads), and machine optimization after replacement.

Q5: Where should the cost of replacing Textile Loom Spare Parts be allocated? A5: The replacement cost is typically allocated to general manufacturing overhead or maintenance costs. Analyzing TCO helps the factory accurately calculate this cost to price export products more competitively.

Q6: How does the supply of poor-quality Textile Loom Spare Parts impact export orders? A6: Poor quality leads to increased fabric defects, a higher rejection rate, and increased machine downtime. This directly causes delivery delays, the risk of customer penalties, or order cancellation, severely damaging the export reputation.

Q7: How does VieTextile ensure fast Textile Loom Spare Parts supply time? A7: We maintain a large strategic reserve stock of critical and consumable Textile Loom Spare Parts in Vietnam. This helps us respond to urgent orders within just 24-48 hours, eliminating international import waiting times.

Q8: Do Textile Loom Spare Parts require special storage? A8: Yes, metal Textile Loom Spare Parts need to be stored in a dry environment, away from dust and high temperatures. Electronic parts should be kept in ESD (Electrostatic Discharge) packaging until installation.

The process of Supplying Textile Loom Spare Parts with quality is a non-negotiable factor in ensuring competitiveness and stability for export manufacturing factories. Contact VieTextile today to receive a quotation and the most comprehensive Textile Loom Spare Parts supply solution.

Contact Information:

• Hotline: 0901 809 309
• Email: info@vietextile.com

Website: https://vietextile.com

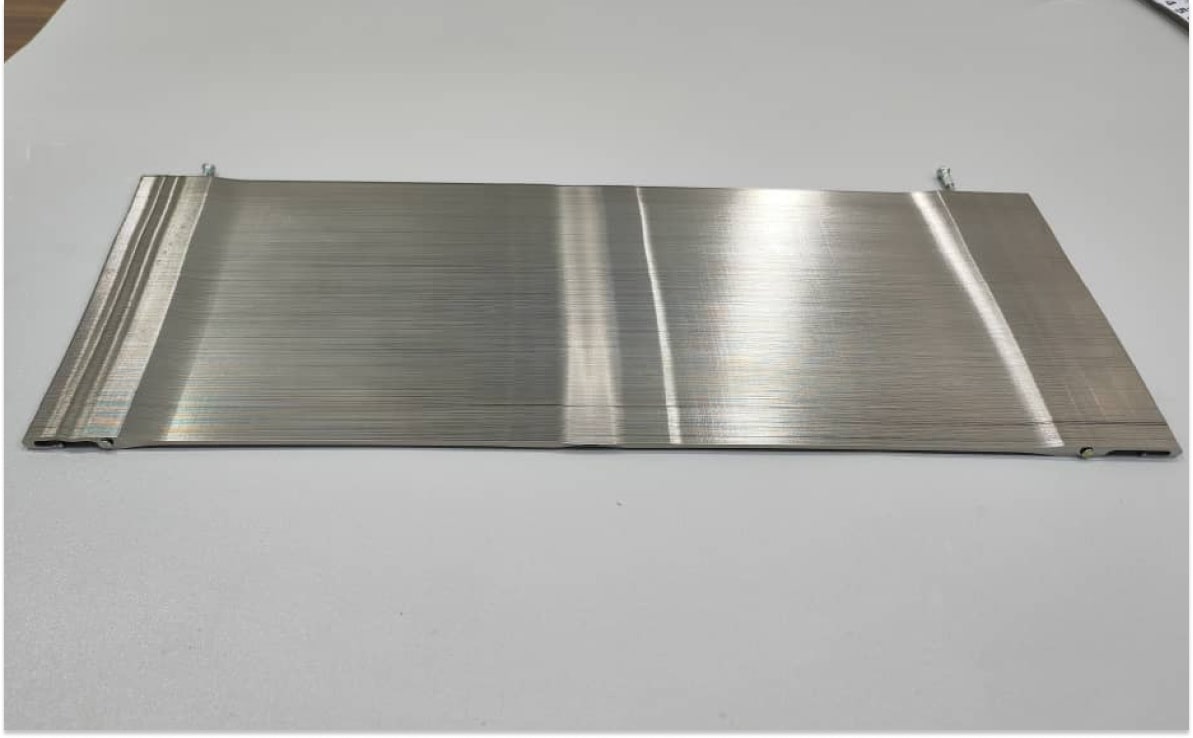

In the modern textile industry, the Heald Frame is one of the most critical loom spare parts, playing a core role in forming the warp thread shedding. The heald frame must endure millions of movement cycles at high speeds, constantly rubbing against the heald wire, and bearing tension from the warp threads. Consequently, the requirements for durability, lightness, and wear resistance from heald frame suppliers are increasingly stringent.

A poor-quality or worn heald frame not only reduces weaving speed but also causes warp thread breakage, creating defects on the fabric surface, and increasing maintenance costs. This VieTextile article will delve into the importance of selecting a wear-resistant heald frame supplier, analyzing technical factors, advanced materials, and maintenance strategies to optimize weaving performance.

1. The Core Role of the Heald Frame in the Weaving Process

The heald frame is the mechanical component responsible for raising and lowering groups of warp threads according to the weave pattern, creating the shed for the weft thread to pass through. This is an extremely high-frequency, repetitive process.

The accuracy and durability of the heald frame are two decisive factors for the quality and productivity of the loom.

1.1. Warp Shedding Mechanism

In Dobby or Jacquard looms, the heald frame is connected to the control system to move according to programming:

• Vertical Movement: The heald frame moves up and down, carrying the heald wires and warp threads. The movement speed must be absolutely synchronized with the weaving speed.
• Shed Creation: The warp shed needs a precise size and shape to ensure the rapier or air-jet can insert the weft thread without collision. Frame faults deform the shed, causing friction and yarn breakage.

1.2. Technical Requirements for Modern Heald Frames

Heald frame suppliers must meet strict standards:

• Rigidity: The heald frame must have high stiffness to prevent warping or vibration when moving at high speed. Deformation causes misalignment of the warp threads.
• Low Mass: Low weight reduces inertia when the heald frame changes direction, allowing the loom to operate at higher speeds and saving more energy. Modern heald frames often use aluminum alloys or carbon fiber.
• Wear Resistance: The sliding grooves and contact points of the heald frame must have high surface hardness to withstand continuous friction.

1.3. Consequences of Using Substandard Heald Frames

Heald frames that do not meet technical standards lead to serious problems:

• Increased Warp Breakage: Friction between the yarn and the heald frame increases, especially at the edges of the frame, causing warp breaks, leading to continuous machine stops and reduced productivity.
• Fabric Density Defects: Vibration caused by a loose or deformed heald frame affects the uniformity of warp thread tension, causing fabric surface defects.
• Reduced Machine Lifespan: The excessive weight of the heald frame increases the load on the Dobby or Jacquard drive system, wearing out bearings and gears faster.

2. Materials and Design of Wear-Resistant Heald Frames

The selection of materials and manufacturing technology is the decisive factor in the wear resistance and durability of the heald frame.

Reputable heald frame suppliers always focus on material improvement to meet increasing weaving speeds.

2.1. Heald Frame Material (Frame Structure)

• Special Aluminum Alloy: Most heald frames are made from high-strength aluminum alloy (often Duralumin), characterized by being lightweight yet rigid. This material must be Heat Treated correctly to achieve maximum hardness.
• Carbon Fiber: In extremely high-speed weaving applications, carbon fiber heald frames are used to minimize weight (reducing up to compared to aluminum), helping the loom achieve weaving speeds 50% higher than conventional speeds.

2.2. Surface Treatment Technology

Wear resistance is primarily focused on the contact points:

• Hard Anodizing: Aluminum heald frames must undergo Hard Anodizing to create a thick, hard aluminum oxide layer on the surface, especially the sliding grooves. This layer has a hardness close to diamond, significantly reducing friction and wear.
• Wear-Resistant Polymer Coating: Some premium heald frames are supplied by heald frame suppliers with a special polymer coating (e.g., PTFE) in areas of direct contact with the guide rail, helping to reduce the coefficient of friction.

2.3. Design of Top and Bottom Rails

• Top/Bottom Rail: The design must ensure the heald wire slides smoothly. The heald wire guiding grooves need optimal angle and depth to minimize horizontal impact from the heald wire.
• Side Bar: The side bar must have an Aerodynamic design to reduce air resistance at high speeds and minimize noise.

3. Standard Heald Frame Assembly Procedure

The heald frame assembly process must adhere to strict procedures to ensure synchronization and accuracy after installation.

Improper heald frame assembly is a common cause of vibration and weaving defects.

3.1. Heald Wire Preparation

• Heald Wire Classification: Heald wires must be classified by type and precise length for each fabric type. The heald wire (an accessory of the heald frame) must be checked for chips, rust, or warping.
• Quantity Assurance: Count and distribute the heald wires according to the exact quantity and weaving pattern sequence.

3.2. Heald Frame Assembly

• Uniform Tension: The top and bottom rails must be assembled and secured with a uniform Torque. A difference in torque causes frame deformation.
• Heald Wire Installation: Install the heald wires onto the frame according to the correct quantity (PPM – Picks Per Minute) and fabric density.
• Weight Check: For high-speed looms, the weight of each heald frame after installing the heald wires must be checked. The weight difference between frames must be minimal (usually no more than 100 grams) to ensure dynamic balance.

3.3. On-Loom Setting

After installing the heald frame on the loom, precise adjustments must be made:

• Height Setting: The height of the heald frame at its lowest and highest positions must be adjusted to create the precise shed, avoiding rubbing against the weft yarn or rapier.
• Horizontal Balance Adjustment: Ensure all heald frames are perfectly aligned and balanced on the guide rail.
• Shed Opening Timing Calibration: Use a Stroboscope or electronic measuring device to check the start and end timing of the heald frame movement. Incorrect timing is the main cause of warp thread breakage.

4. Maintenance and Optimization of Heald Frame Lifespan

Regular maintenance is the decisive factor in extending the lifespan and maintaining the wear resistance of the heald frame.

Professional heald frame suppliers always recommend a strict preventive maintenance procedure.

4.1. Periodic Heald Frame Cleaning

Lint and oil residue are the biggest enemies of the heald frame:

• Cleaning Frequency: Clean the heald frame daily with clean compressed air. In-depth cleaning (removing the frame from the loom) should be performed monthly or when changing to a new fabric type.
• Lint Removal: Adhered lint increases friction and the weight of the heald frame, especially in the sliding grooves, causing faster wear.

4.2. Checking Wear Levels

Periodically visually inspect and measure high-load areas:

• Sliding Grooves: Use a precise gauge to check the depth and shape of the sliding grooves. If the grooves are worn unevenly or exceed the allowable tolerance, the heald frame should be replaced or sent for refurbishment.
• Contact Points: Check the contact points between the heald frame and the guide rail. This is where the Anodizing layer is most susceptible to wear.

4.3. Heald Frame Refurbishment

For expensive heald frames, refurbishment is an economical option:

• Refurbishment Process: The refurbishment process includes complete dismantling, checking the frame’s straightness, welding minor cracks, and most importantly, re-applying the hard Anodizing layer to the sliding grooves and contact points.
• Benefits: Refurbishing the heald frame by professional units can extend the heald frame’s lifespan by many years at a significantly lower cost than purchasing new heald frames from a heald frame supplier.

5. Other Factors Affecting Heald Frame Performance

The performance of the heald frame depends not only on the frame itself but also on other loom spare parts and the operating environment.

Controlling the working environment is also part of the strategy for a sustainable heald frame supplier.

5.1. Influence of Heald Wire

The heald wire is a direct accessory of the heald frame:

• Heald Wire Material: Heald wires must be made of high-quality stainless steel with absolute surface smoothness. Rusted or sharp-edged heald wires damage the warp threads and quickly wear out the guiding grooves on the heald frame.
• Heald Wire Type: The use of J, C, or O type heald wires must be appropriate for the fabric type and heald frame design.

5.2. Guide Rail System

The guide rail is where the heald frame slides:

• Absolute Straightness: The guide rail must be perfectly aligned. Any deviation creates uneven pressure on the heald frame, causing localized wear.
• Lubrication: The guide rail needs to be lubricated with specialized oil/grease as recommended by the machine manufacturer to reduce friction with the heald frame accessory.

5.3. Environmental Humidity and Temperature

The operating environment directly affects the heald frame material:

• Humidity: High humidity (often above 75%) easily causes rust on the steel components of the heald wire, thereby increasing heald frame wear.
• Temperature: Excessive loom temperature can cause slight deformation or reduce the lifespan of polymer coatings on the heald frame.

6. VieTextile – A Leading Reputable Heald Frame Supplier

VieTextile is a professional heald frame supplier, committed to providing wear-resistant, high-durability heald frame solutions, helping to optimize performance and reduce maintenance costs for textile mills.

We understand that a quality heald frame supplier service is not just about the product, but also the accompanying technical solution.

• Diverse Products, High Quality: We supply heald frames for most leading rapier and air-jet loom brands such as Picanol, Sulzer, Tsudakoma, and DORNIER, featuring high-strength aluminum alloy material and hard Anodizing treatment.
• Advanced Material Solutions: We offer heald frame options made from composite/carbon fiber materials to meet the requirements of extremely high-speed weaving, reducing inertia and saving energy.
• Technical Support Services: VieTextile’s experienced engineering team is ready to advise on selecting the most suitable heald frame for your density and yarn type, as well as providing technical support during the assembly and calibration of the frame on the loom.
• Commitment to Precision: Every heald frame supplied by VieTextile undergoes strict inspection for straightness, balance, and surface hardness before delivery.

7. Frequently Asked Questions (FAQ) About Heald Frame Suppliers

Q1: What is the average lifespan of a heald frame? A1: The lifespan of a high-quality heald frame usually lasts from 5 to 10 years, or equivalent to hundreds of millions of weaving cycles, if maintained and lubricated correctly.

Q2: How to know if a heald frame needs replacement or refurbishment? A2: The main sign is when the sliding grooves are worn beyond the allowable tolerance, cracks appear, or when the loom experiences abnormal vibration due to the heald frame’s weight imbalance.

Q3: Is a carbon fiber heald frame more durable than an aluminum frame? A3: A carbon fiber heald frame is not necessarily more durable in terms of wear resistance, but it excels in stiffness and light weight, allowing the loom to operate at higher speeds, increasing productivity.

Q4: Which machine models does VieTextile supply heald frames for? A4: We specialize in supplying heald frames for Rapier Looms and Air-jet Looms of leading global brands.

Q5: Is it safe to clean the heald frame with chemicals? A5: Strong chemicals or corrosive solvents should be avoided. Only clean compressed air or mild, acid-free detergent should be used to protect the Anodizing and Polymer coatings of the heald frame.

Q6: Can a slightly deformed heald frame be welded? A6: Welding a heald frame is very complex and must be performed by experienced specialists. Improper welding can alter the material structure, causing cracks and weight imbalance.

Q7: Does the heald frame supplier provide heald wires along with the frame? A7: Heald frames and heald wires are usually supplied separately for customers to easily customize according to needs. However, VieTextile offers bundled packages including both the heald frame and compatible heald wires.

Q8: How to check the tightening torque when assembling the heald frame? A8: A Torque Wrench must be used to tighten the bolts securing the heald frame according to the manufacturer’s recommended value (usually provided in the machine’s technical manual).

The selection and management of a heald frame supplier is a strategic investment decision, directly affecting the quality and profitability of the textile production line. Contact VieTextile today to receive the most optimal heald frame solution.

Contact Information:

• Hotline: 0901 809 309
• Email: info@vietextile.com
• Website: https://vietextile.com

The Jacquard loom is the heart of complex pattern fabric production, from damask silk to high-end upholstery. The core of this system is the mechanism that controls each warp thread independently, consisting of thousands of tiny Jacquard loom spare parts. The accuracy and durability of these components (such as hooks, needles, and knife blades) directly determine the quality of the pattern and the productivity of the machine.

For textile mills, implementing a scientific procedure for maintenance and replacement of Jacquard loom spare parts is not just about upkeep—it’s an investment strategy to extend equipment lifespan, minimize downtime, and maintain a competitive edge in product quality. This article will delve into professional maintenance procedures, common Jacquard spare part failures, and precise replacement guides to help you optimize weaving performance.

1. Structure and Operating Principle of Modern Jacquard Systems

To understand the importance of maintenance, one must grasp the complex structure and operational principles of the Jacquard head, where the Jacquard loom spare parts play a core role.

A modern Jacquard system (usually an electronic Jacquard) is a sophisticated combination of mechanics and electronics.

1.1. Combined Electronic and Mechanical Architecture

• Electronic Controller Box: This is the brain that receives signals from the loom and the pattern design software (CAD). It converts the digital pattern into electronic signals, controlling the Solenoids or Piezo actuators.
• Knife/Griffe: The main mechanical component responsible for lifting the Hooks. The knife moves up and down continuously synchronized with the machine’s weaving rhythm.
• Needle and Hook: The needle is the component that receives the electronic signal from the solenoid. The hook connects to the needle and the Harness cords. The needle moves linearly to control whether the hook engages or disengages with the knife. These Jacquard loom spare parts determine which warp threads are lifted.

1.2. The Complex Pattern Weaving Cycle

The operating principle of the Jacquard loom revolves around controlling each warp thread independently through the following cycle:

1. Data Reception: The Jacquard controller reads the pattern data for the next weft insertion.
2. Needle Activation: The electrical signal activates the solenoids corresponding to the warp threads that need to be lifted. The corresponding needle moves.
3. Hook Engagement: The hooks (critical Jacquard loom spare parts) connected to the moved needles are positioned to allow the knife to lift them.
4. Warp Lifting: The knife moves up, lifting the engaged hooks. These hooks pull the Harness cords and the weights (Lingo), thereby lifting the corresponding warp threads to form the weaving shed.
5. Cycle Completion: The shuttle/rapier/air nozzle passes the weft thread through the shed. The knife descends, returning the hooks and warp threads to their initial position.

1.3. Operational Stress on Jacquard Loom Spare Parts

Due to performing this complex cycle at very high speeds (often 500 to 1,000 Picks Per Minute), Jacquard loom spare parts face:

• High Dynamic Load: Constant impact and significant friction occur between the needles and hooks, and the hooks and the knife.
• Frictional Heat: Friction between the Sliders and guide bars generates heat, requiring the lubrication system to operate flawlessly.
• Lint Environment: Lint from the weaving process adheres to mechanical parts, increasing friction and causing jamming, especially around small Jacquard loom spare parts like hooks and needles.

2. The Importance of Regular Maintenance for Jacquard Loom Spare Parts

The Jacquard system operates at extremely high speeds, constantly performing hundreds of weaving beats per minute. This subjects the Jacquard loom spare parts to large dynamic loads, leading to rapid wear.

Regular maintenance is key to ensuring absolute synchronization between components.

2.1. Maintaining Pattern Accuracy

• Cause of Error: The slightest fault in a hook or needle can misalign a single warp thread. Accumulated errors from dozens of worn Jacquard loom spare parts will lead to a pattern defect (Mis-pick), reducing fabric quality.
• Maintenance Solution: Maintenance helps inspect and replace warped or worn Jacquard loom spare parts, ensuring each warp thread is controlled precisely according to the weaving program.

2.2. Extending Overall Equipment Lifespan

• Minimizing Friction: Maintenance includes precisely lubricating moving parts like the sliders and the knife. Reduced friction slows down the wear process of the Jacquard loom spare parts, extending the lifespan of the entire Jacquard head.
• Preventing Catastrophic Failures: A broken hook can fly out and damage a series of adjacent hooks and needles. Maintenance detects failing Jacquard loom spare parts early, preventing major, costly incidents.

2.3. Optimizing Productivity and Efficiency

• Reducing Downtime: Jacquard looms typically have higher average downtime due to Jacquard loom spare parts failure than conventional looms. Preventive maintenance minimizes sudden yarn breaks and machine faults, maximizing continuous operating time.
• Saving Energy: Worn or dry Jacquard loom spare parts increase mechanical resistance. Timely lubrication and replacement of Jacquard loom spare parts reduce the load on the motor, saving power consumption.

3. Procedure for Regular Maintenance of Jacquard Loom Spare Parts

The maintenance procedure for Jacquard loom spare parts must be carried out according to a strict schedule and standard, including steps from basic cleaning to detailed inspection.

3.1. Daily Maintenance (Quick Check)

• Surface Cleaning: Use clean compressed air to remove lint and oil residue from the Jacquard head. Absolutely prevent lint accumulation on the needle and hook system.
• Sound Check: Listen to the operating sound of the Jacquard head. Any strange rattling, banging, or unusual screeching noise is a sign of worn or lack of oil in the Jacquard loom spare parts.
• Temperature Check: Feel or use an infrared temperature gun to check contact areas. Localized temperature increase is a sign of excessive friction, requiring supplementary lubrication.

3.2. Weekly/Monthly Maintenance (Detailed Inspection)

• Lubricating Knife and Slider System: The sliders and knife are the moving parts subject to the greatest friction. Check the oil level and re-lubricate with specialized oil (Jacquard Oil) according to the Jacquard loom spare parts manufacturer’s recommendations.
• Inspecting Needles and Hooks: Use a magnifying glass to check for bending, wear, or rust on the needles and hooks. Manually raise and lower a few representative needles to check for smoothness.
• Inspecting Warp Lifting Mechanism (Harness Cord): Check the tension and wear condition of the Harness Cord. A worn cord can cause warp thread misalignment.

3.3. Quarterly/Semi-Annual Maintenance (Critical Component Overhaul)

• Inspecting Electronic Box/Circuit Board: Check electrical connections and clean the control circuit board of the Jacquard system. Ensure the cooling fan is operating effectively.
• Disassembling Warp Clamps: Disassemble and thoroughly clean the warp clamp components (Heald/Lingo) to remove embedded woven fibers.
• Inspecting Drive System: Check the tension of the drive belt and the wear of the gears linking the loom and the Jacquard head.

4. Common Jacquard Loom Spare Parts Failures and Detection Methods

Early recognition of wear signs in Jacquard loom spare parts is the most crucial step to prevent major incidents and maintain performance.

The most common failure is mechanical wear due to continuous friction and lack of lubrication.

4.1. Wear of Hook and Needle

• Signs of Wear: Hooks and needles are the most susceptible Jacquard loom spare parts to wear. When worn, they are often flattened at the contact points with the knife or slightly bent at the tip.
• Consequence: Worn needles increase friction, reducing reaction speed; Worn hooks reduce yarn retention ability, leading to missed picks (Miss-pick).
• Detection: Inspect with a magnifying glass and use specialized measuring gauges to check the thickness at contact points.

4.2. Failure of Knife/Griffe and Slider

• Signs of Wear: The knife blade is unevenly worn or shows grooves on the surface. The slider may be loose or have deep scratches.
• Consequence: A worn knife reduces the ability to lift hooks uniformly, causing strong vibration in the Jacquard head. A damaged slider reduces the accuracy of linear movement.
• Detection: The knife and slider must be disassembled and checked for flatness. Replace immediately if wear exceeds tolerance.

4.3. Harness System Failure

• Signs of Damage: The Harness Cord is frayed, broken, or stretched unevenly. The weights (Lingo/Linguet) are dented or warped.
• Consequence: Stretched cords misalign the warp thread lifting/lowering timing, causing continuous yarn breakage and pattern defects. A warped weight increases friction with the guide bar.
• Detection: Check the Harness Cord tension with specialized measuring equipment. Visually inspect the weights for impact damage.

5. Precise Replacement Procedure for Jacquard Loom Spare Parts

Replacing Jacquard loom spare parts requires high precision and strict adherence to technical steps to ensure the machine operates smoothly after installation.

Only genuine or high-quality OEM Jacquard loom spare parts should be used to ensure compatibility and durability.

5.1. Preparation and Disassembly

• Absolute Power Off: Completely disconnect power and hang warning signs before disassembling any Jacquard loom spare parts.
• Disassembling Related Components: Depending on the part to be replaced (hook, needle, or knife), carefully disassemble related components, e.g., removing the needle when replacing the hook and vice versa.
• Note Positions: Mark or record the precise position of each Jacquard loom spare part, especially the knife blades and sliders, as they are often installed in a specific sequence.

5.2. Installing New Jacquard Loom Spare Parts

• Component Inspection: Visually inspect the new Jacquard loom spare part for manufacturing defects or warping.
• Installing Hook/Needle: Install the new needle or hook in the correct position and ensure they slide freely, without jamming or rubbing against adjacent needles/hooks.
• Installing Knife/Slider: Install the new knife and slider with high precision, tightening the bolts according to the standard Torque to prevent Jacquard frame deformation.

5.3. Calibration and Trial Run

• Knife Height Adjustment: Adjust the height of the knife blade to ensure it lifts the hooks with uniform force and creates the warp shed according to the standard.
• Timing Check: After replacing Jacquard loom spare parts, re-check the Timing of the Jacquard head (the moment the hook is lifted/lowered) relative to the loom’s movement.
• Low-Speed Trial Run: Operate the machine at low speed (Jogging/Creeper Speed) to check the smooth operation of the new Jacquard loom spare parts and listen for any unusual noise before increasing production speed.

6. Optimizing Performance with High-Quality Jacquard Loom Spare Parts

Choosing a high-quality source for Jacquard loom spare parts is a strategic factor, directly affecting the maintenance cycle and equipment lifespan.

Investing in high-quality Jacquard loom spare parts is the best way to reduce the Total Cost of Ownership (TCO).

6.1. Special Wear-Resistant Materials

• Tool Steel: High-quality hooks and needles must be made from wear-resistant Tool Steel, surface-heat-treated to achieve high hardness, resisting continuous friction.
• Special Coatings: Some premium Jacquard loom spare parts (like sliders) are coated with anti-friction layers (e.g., Titanium Nitride – TiN) or heat-resistant Polymers, helping reduce the coefficient of friction and extend lifespan.

6.2. Genuine (OEM) vs. OEM/Aftermarket Jacquard Loom Spare Parts

• Genuine (OEM): Ensures compatibility and usually has the longest lifespan. However, the initial investment cost is high.
• High-Quality OEM/Aftermarket: Reputable suppliers like VieTextile offer Jacquard loom spare parts with specifications and materials equivalent to OEM at a more optimal cost, making them a smart choice for SMEs.

6.3. Precise Technical Standards

New Jacquard loom spare parts must strictly adhere to the manufacturer’s technical tolerances:

• Thickness and Flatness: The thickness of the needle and hook must be accurate to the micron. Small deviations can cause jamming or increase friction between adjacent needles/hooks.
• Surface Hardness: Hardness must meet the standard (usually the Rockwell C scale) to resist wear in the harsh working environment.

7. VieTextile – A Reliable Jacquard Loom Spare Parts Supplier

VieTextile is a professional partner in supplying Jacquard loom spare parts, committed to providing high-quality component solutions, superior durability, and in-depth technical support services.

We understand the complexity and stringent requirements of modern Jacquard systems.

• Diverse Spare Parts: We supply a full range of Jacquard loom spare parts for leading brands like Bonas, Stäubli, Grosse, and modern rapier/air-jet looms.
• Commitment to Material Quality: The hooks, needles, and knife blades supplied by VieTextile are made from high wear-resistant material, correctly heat-treated to standard, ensuring optimal lifespan.
• In-Depth Technical Support: Our engineering team is ready to consult on the on-site maintenance and replacement procedures for Jacquard loom spare parts, helping your factory mitigate technical risks.
• Cost Optimization Solutions: We supply OEM quality Jacquard loom spare parts at competitive prices, helping textile enterprises optimize operating costs.

8. Frequently Asked Questions (FAQ) About Jacquard Loom Spare Parts

Q1: What is the replacement frequency for Jacquard loom hooks and needles? A1: The replacement frequency for hooks and needles depends on the weaving speed and yarn type. On average, they can operate effectively for about 3 to 5 years (or 100 to 150 million weaving beats) if lubricated and maintained correctly.

Q2: Is specialized oil required for lubricating Jacquard loom spare parts? A2: Yes, it is mandatory to use specialized Jacquard Oil with special viscosity and additives, designed to withstand the high speed and operating temperature of the system. Conventional oil can cause sludge formation or damage plastic components.

Q3: Can a slightly bent Jacquard loom spare part be straightened? A3: It is not recommended. Even a slight bend alters the mechanical properties and friction of the Jacquard loom spare part, leading to pattern errors and faster wear. The bent component must be replaced immediately.

Q4: How to check the uniformity of Harness cord tension? A4: A specialized Tension Meter must be used. The Harness cord tension must be uniform across the entire width of the machine to ensure the warp threads are lifted/lowered accurately.

Q5: What is the most serious impact of using poor-quality Jacquard loom spare parts? A5: The most dangerous is a chain reaction failure: a broken Jacquard loom spare part (like a hook) can fly out and damage a series of adjacent components, causing significant damage to the entire Jacquard head and prolonged downtime.

Q6: What types of Jacquard loom spare parts does VieTextile supply? A6: We supply core components such as hooks, needles, knife blades, sliders, spring systems, and electronic components for the Jacquard head.

Q7: Is it necessary to replace all hooks at once? A7: Not necessary. The replacement of Jacquard loom spare parts should be based on wear inspection results. However, if a local area shows severe wear, the group of hooks/needles in that area should be replaced simultaneously to ensure synchronization.

Q8: How should spare Jacquard loom spare parts be stored? A8: Spare Jacquard loom spare parts (especially steel components) should be stored in a dry, dust-free environment, coated with a light layer of anti-rust oil, and kept in sealed packaging, away from dust and high temperatures.

Implementing a professional maintenance and replacement procedure for Jacquard loom spare parts is a decisive factor in maintaining competitiveness and product quality. Contact VieTextile today for the most optimal Jacquard loom spare parts solution.

Contact Information:

• Hotline: 0901 809 309
• Email: info@vietextile.com
• Website: https://vietextile.com
