The textile industry relies heavily on precision, and the performance of your dyeing machine spare part is central to consistent quality. Choosing the right components is a strategic decision that directly impacts operational efficiency and production costs. This ultimate guide provides a detailed roadmap to ensure you select the best parts.
The textile dyeing process is a complex, high-stakes operation that demands peak performance from every piece of equipment. At the heart of this process are the dyeing machine spare part components. These parts, often small and specialized, dictate the machine’s efficiency, longevity, and—most importantly—the quality of the final dyed fabric. A single failing part can lead to costly downtime, inconsistent color batches, and significant waste.
This comprehensive guide is designed to empower factory managers, maintenance teams, and procurement specialists with the knowledge to make informed decisions. We will explore the various types of dyeing machine spare part components, the critical factors to consider during selection, and the long-term benefits of prioritizing quality. By the end, you will understand how to optimize your inventory and maintenance strategy to keep your dyeing operations running smoothly.
1. Understanding the Different Types of Dyeing Machine Spare Part
Dyeing machines, whether they are HTHP (High Temperature High Pressure), atmospheric jets, or jigger machines, are complex systems. Each machine has a vast array of specialized components. Understanding the major categories of dyeing machine spare part is the first step toward effective maintenance and procurement.
1.1. Mechanical Spare Parts
These are the moving components that facilitate the physical processes within the machine, often experiencing the most wear and tear.
1.1.1. Pump Assemblies and Impellers
The pump is the heart of the dyeing machine, circulating the liquor efficiently. Key dyeing machine spare part in this area include the main circulating pump, transfer pump, and the impeller. A worn impeller reduces flow rate, leading to poor color penetration and uneven dyeing.
1.1.2. Sealing and Gasket Components
Seals (O-rings, mechanical seals) and gaskets are crucial for maintaining the pressure and temperature required for effective dyeing, especially in HTHP machines. A faulty seal can cause leaks, pressure loss, and safety hazards. High-quality materials like Viton or EPDM are essential for long-lasting performance in the presence of various chemicals and high heat.

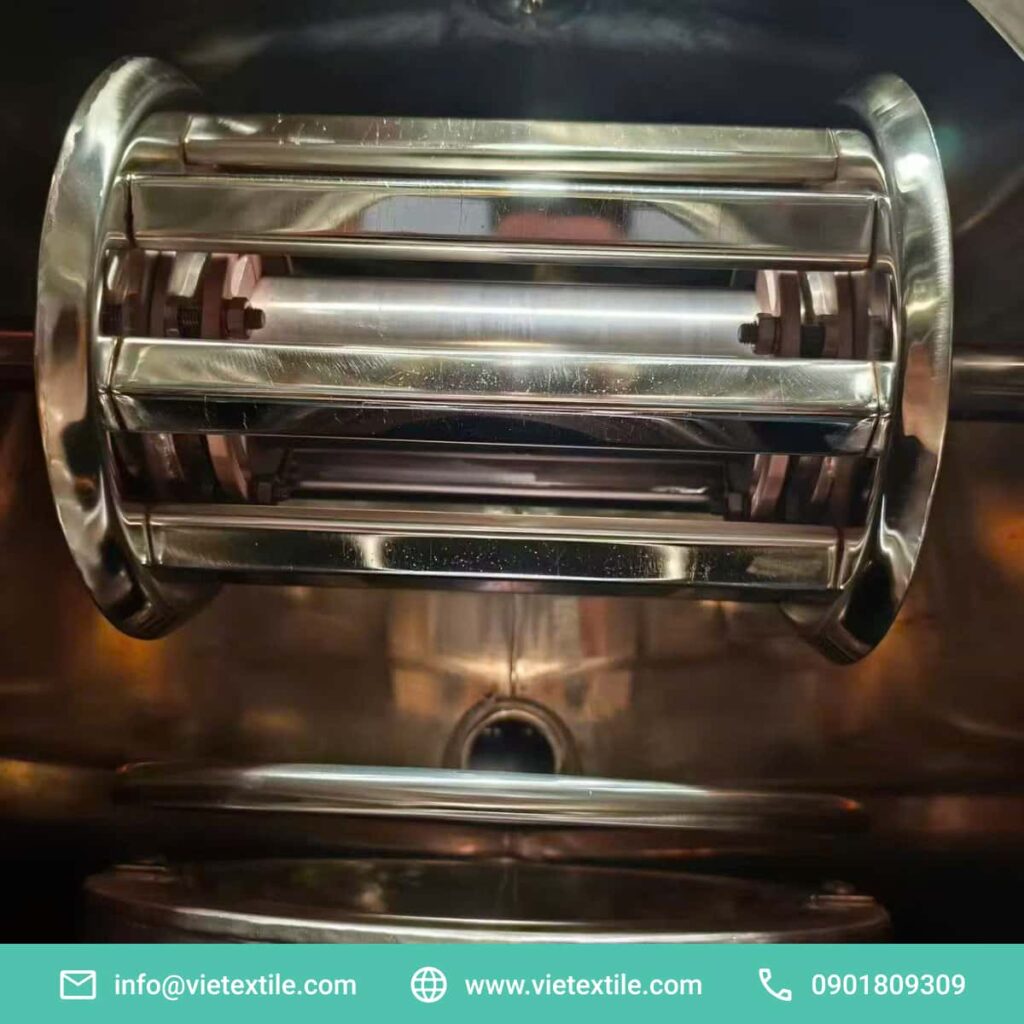

1.1.3. Fabric Transportation Systems
These parts ensure the fabric moves through the machine smoothly without damage. Examples include cloth rollers, pressure rollers, and various drive mechanisms. Damage to these dyeing machine spare part can cause rope marks, creases, or inconsistent tension, severely affecting fabric quality. A failure in the fabric transportation system means a complete shutdown of the machine, making these parts critical A-class inventory items.
1.2. Electrical and Electronic Spare Parts
The brain and nervous system of the dyeing process. These components control temperature, time, and dosage with precision.
1.2.1. Control Panels and PLCs
The Programmable Logic Controller (PLC) is the core control unit. Spares like I/O modules, power supplies, and communication cards are critical for automated operation. A reliable PLC ensures precise execution of the dyeing program, which is vital for color repeatability. When sourcing a replacement dyeing machine spare part for the PLC, always verify software compatibility and revision levels.
1.2.2. Sensors and Transducers
Accurate measurement is non-negotiable in dyeing. This category of dyeing machine spare part includes:
- Temperature sensors (PT100): For precise temperature control, usually placed in multiple points in the machine.
- Level sensors: To accurately measure liquor volume, essential for maintaining the correct liquor ratio (MLR).
- Pressure transducers: For monitoring pressure inside the vessel, crucial for safe HTHP operations.
1.2.3. Motors and Drives
Motors power the pumps and fabric movement systems. Variable Frequency Drives (VFDs) control motor speed, ensuring gentle and precise fabric handling. These are high-value dyeing machine spare part requiring expert selection and maintenance, particularly matching the VFD characteristics to the motor’s power curve for optimal efficiency.
1.3. Valves and Pneumatic Components
Valves control the flow of water, steam, dye, and chemicals, while pneumatic systems often actuate these valves precisely and rapidly.
1.3.1. Control and Shut-off Valves
This includes steam inlet valves, water inlet valves, and drain valves. The reliability of a solenoid or pneumatic valve directly impacts the accuracy of chemical dosing and temperature ramping. Choosing robust, corrosion-resistant valves is key to a long-lasting dyeing machine spare part inventory. Frequent cycling requires robust internal components.
1.3.2. Air Preparation Units
Pneumatic components such as filters, regulators, and lubricators (FRL units) prepare the compressed air used to control the valves. Maintaining clean, dry, and regulated air is vital for the proper function and longevity of all actuated dyeing machine spare part. Ignoring air quality is a common reason for premature valve failure.
2. Key Factors When Selecting a Dyeing Machine Spare Part
Selecting a generic component can lead to immediate failure or reduced efficiency. The decision must be based on a rigorous evaluation of several critical factors. Prioritizing these factors ensures that every dyeing machine spare part you purchase adds value to your operation.
2.1. Compatibility and OEM Specifications
The most fundamental requirement is that the dyeing machine spare part must be fully compatible with the specific machine model, whether it’s a machine from Thies, Fong’s, Sclavos, or a local manufacturer.
2.1.1. Matching Model and Series
Always cross-reference the part number with the machine’s manual and the original component’s specifications. A seemingly identical part from a different series might have minor yet critical differences in tolerances or material composition, leading to reduced efficiency or outright mechanical failure.
2.1.2. Importance of Original Equipment Manufacturer (OEM) Standards
While non-OEM parts can offer cost savings, they must meet or exceed OEM quality standards. A reputable supplier of a dyeing machine spare part will be able to provide certifications and documentation that confirm their component meets the required dimensional, material, and performance tolerances. Always prioritize certified third-party components that specialize in that particular dyeing machine spare part.
2.2. Material Composition and Chemical Resistance
Dyeing processes involve high temperatures, high pressure, and exposure to aggressive chemicals (acids, alkalis, dyes, surfactants). The material of the dyeing machine spare part must withstand this harsh environment without degrading or contaminating the dye liquor.
2.2.1. Stainless Steel Grades
For parts that contact the liquor (vessel walls, pumps, impellers), only high-grade stainless steel like SS316L is acceptable due to its superior corrosion resistance compared to standard SS304. Inferior material will quickly degrade, contaminating the batch, causing fabric defects, and requiring premature replacement of the dyeing machine spare part.
2.2.2. Polymer and Elastomer Selection
For seals, gaskets, and valve diaphragms, the specific chemical environment dictates the material:
- Viton (FKM): Excellent resistance to high temperatures and a wide range of organic and inorganic chemicals.
- EPDM: Highly resistant to hot water and steam, often preferred for its sealing properties in non-oil environments.
- PTFE (Teflon): Superb chemical inertness, often used in critical seals and valve seats where zero contamination is required. This choice significantly impacts the lifespan of the dyeing machine spare part.
2.3. Performance, Efficiency, and Longevity
The true cost of a dyeing machine spare part is not its purchase price, but the total cost of ownership (TCO), which includes replacement frequency, maintenance costs, and its impact on energy consumption.
2.3.1. Energy Efficiency
A poorly manufactured pump impeller, for instance, can reduce hydraulic efficiency by up to 10-15%, forcing the motor to consume significantly more electricity to maintain the required flow rate. Investing in high-efficiency dyeing machine spare part (like precision-machined impellers or low-friction mechanical seals) can lead to substantial long-term energy savings that quickly justify the higher initial cost.
2.3.2. Durability and Expected Lifespan
Choose parts known for their durability. A component that lasts twice as long, even if it costs 30% more upfront, results in substantial savings from reduced downtime, fewer maintenance labor hours, and a lower overall replacement rate. This focus on lifespan is key when assessing any dyeing machine spare part. Demand supplier guarantees regarding the operational hours or cycles of critical components like bearings and seals.
3. A Step-by-Step Process for Procuring Dyeing Machine Spare Parts
A systematic approach to procurement is vital for avoiding costly mistakes and ensuring a consistent supply of quality components. This process moves from identifying the need to final installation and inventory management.
3.1. Needs Assessment and Criticality Analysis
The process begins with accurately identifying which dyeing machine spare part is needed and how critical it is to continuous operation. This dictates the urgency and necessary quality level.
3.1.1. Defining the Need
Is the part needed for scheduled preventative maintenance (PM), or is it a reactive purchase to address an unexpected breakdown? PM parts can be sourced with lead time, allowing for competitive pricing and thorough quality checks. Breakdown parts, however, require immediate, expedited attention and access to reliable, locally stocked inventory.
3.1.2. ABC Analysis for Spare Part Stocking
Classify all dyeing machine spare part based on their impact and cost:
- A-Class: High-cost, long-lead-time, or mission-critical parts (e.g., PLCs, main circulating pumps, specialized heat exchangers). These must be kept in stock.
- B-Class: Moderate cost and criticality (e.g., standard control valves, minor motors, common sensors). Stock level based on historical usage and supplier lead time.
- C-Class: Low-cost, easily replaceable parts (e.g., fuses, small O-rings, common bolts). Can be ordered in bulk with minimal safety stock. This analysis ensures capital isn’t unnecessarily tied up in low-criticality items.
3.2. Vetting and Selecting Suppliers
Choosing the right supplier for your dyeing machine spare part is as important as choosing the part itself. The supplier must offer quality, reliability, and technical support.
3.2.1. Quality Certifications and Traceability
A reputable supplier should offer parts with verifiable traceability, ensuring you know the material source and manufacturing process. Look for ISO 9001 certifications and strict quality control protocols. They should be able to guarantee the precise material composition (e.g., SS316L certification) and dimensional accuracy of the delivered dyeing machine spare part. Request material test reports (MTRs) for metallic components.
3.2.2. Technical Support and Expertise
The best suppliers are also technical partners. They should have the expertise to advise you on which specific dyeing machine spare part is best suited for an older machine model or for an updated chemical process you are implementing (e.g., switching to a new type of dye which requires a more resistant seal material). Their knowledge significantly reduces your risk of purchasing the incorrect component.
3.3. Quality Inspection and Inventory Management
The procurement process is not complete until the new dyeing machine spare part is verified and properly stored for future use.
3.3.1. Incoming Inspection
Upon arrival, visually inspect every part for manufacturing defects, transport damage, and surface finish. Verify the part number, crucial dimensions (using precision tools like calipers and micrometers), and confirm material (e.g., checking the shore hardness of rubber seals). Never install a suspect dyeing machine spare part; a flawed component guarantees premature failure.
3.3.2. Optimal Storage Conditions
Store spares in a clean, controlled environment. Electrical and electronic components need protection from moisture, dust, and temperature fluctuations. Rubber and polymer seals (O-rings, gaskets) must be stored away from direct sunlight, ozone sources (like electric motors), and extreme temperatures to prevent premature degradation, ensuring their full lifespan when finally used as a dyeing machine spare part. Proper tagging and location mapping (bin locations) are essential for rapid retrieval during emergencies.
4. Common Issues and Solutions in Dyeing Machine Spare Part Management
Managing spares in a textile factory is challenging. Proactively addressing common issues can minimize operational interruptions and save significant resources.
4.1. Dealing with Obsolescence of Dyeing Machine Spare Part
Older dyeing machines are reliable workhorse, but their original parts can become obsolete, making procurement difficult. This is a common challenge for factories looking to maximize the return on investment (ROI) from legacy equipment.
4.1.1. Sourcing Aftermarket and Custom Components
When OEM parts are discontinued, reliable aftermarket suppliers, like VieTextile, specialize in reverse engineering or manufacturing high-quality replacement dyeing machine spare part that meet or exceed the original specifications. This requires a supplier with strong technical capabilities, CAD modeling, and precision manufacturing processes to ensure the form, fit, and function are exact replicas.
4.1.2. Strategic Upgrades
Sometimes, the best solution is to upgrade a subsystem rather than replace an obsolete component. For instance, replacing an outdated analog temperature control system with a modern digital PLC and related sensors can improve machine performance, enhance color consistency, and simplify future dyeing machine spare part sourcing since modern components are widely available.
4.2. Minimizing Downtime and Reactive Maintenance
A heavy reliance on reactive maintenance—waiting for a breakdown to order a dyeing machine spare part—is the most expensive approach, leading to lost production hours and rushed, costly shipping fees.
4.2.1. Implementing Predictive Maintenance (PdM)
Use monitoring technologies (vibration analysis on pumps, thermal imaging on electrical cabinets, oil analysis on gearboxes) to predict when a dyeing machine spare part is about to fail. For example, increased pump bearing temperature or vibration signals the need to replace the pump bearing before it seizes, preventing catastrophic machine damage and extensive downtime.
4.2.2. Creating Standard Operating Procedures (SOPs)
Ensure your maintenance team has clear, well-documented SOPs for the quick replacement of high-failure-rate parts (e.g., mechanical seals, temperature probes). Having the right tools pre-staged and a step-by-step procedure, including safety lock-out/tag-out (LOTO), minimizes the machine’s time offline. The SOP should detail the exact dyeing machine spare part required, its bin location, and the necessary torque specifications.
4.3. The Impact of Counterfeit Parts
The textile spares market sometimes includes low-quality or counterfeit parts, which pose a major risk to your operation, leading to unexpected failures, damage to surrounding components, and product quality issues. These are often sold at suspiciously low prices that should immediately raise red flags.
4.3.1. Risks of Inferior Quality
Counterfeit dyeing machine spare part typically use low-grade or incorrect materials (e.g., SS304 instead of SS316L, or cheap rubber instead of Viton). This leads to rapid corrosion, premature wear, and failure under the high-temperature and high-pressure conditions of dyeing. A failed counterfeit seal can lead to a steam or liquor leak, posing a safety risk.
4.3.2. Vetting and Verification
To mitigate this risk, always procure your dyeing machine spare part from established, certified distributors or directly from specialized aftermarket manufacturers with a proven track record. Demand material certifications and a warranty. If a price seems too good to be true for a critical part, it almost certainly indicates a compromise in quality. Build a partnership with trusted suppliers who prioritize quality and traceability.
4.4. Optimizing Inventory Levels and Cash Flow
Holding too much stock ties up capital; holding too little guarantees downtime. The goal is to find the optimal safety stock level for every dyeing machine spare part.
4.4.1. Calculating Safety Stock
The safety stock level for each dyeing machine spare part should be calculated based on usage rate, supplier lead time, and the criticality of the machine component. Use formulas that factor in variability in demand and lead time. For example, a long-lead-time, A-class part needs significantly more safety stock than a common C-class item.
4.4.2. Centralized Digital Tracking
Implement a Computerized Maintenance Management System (CMMS) to track inventory levels, usage history, and replacement schedules. This digitalization eliminates guesswork, provides accurate forecasts for future demand for each dyeing machine spare part, and automatically triggers reorder points, preventing stock-outs during critical periods.
5. Advanced Strategies for Dyeing Machine Optimization and Spare Part Planning
Moving beyond basic maintenance, factories can implement advanced strategies focused on Total Cost of Ownership and standardization to achieve world-class operational efficiency.
5.1. Total Cost of Ownership (TCO) Analysis
When evaluating a dyeing machine spare part, switch the focus from purchase price to TCO. This comprehensive calculation is the key to long-term profitability.
5.1.1. TCO Calculation Components
The TCO for a dyeing machine spare part includes:
- Purchase Price: The initial cost of the part.
- Installation Cost: Labor time required for installation.
- Operating Cost: Impact on energy consumption (efficiency).
- Maintenance Cost: Frequency and cost of repair/replacement.
- Downtime Cost: Lost revenue and overhead during machine failure (often the largest component). A high-quality, higher-priced dyeing machine spare part often has the lowest TCO due to minimal downtime and superior energy efficiency.
5.1.2. Life Cycle Assessment (LCA)
Perform a life cycle assessment on critical components. For example, comparing two different brands of mechanical seals. Brand A might be cheap but lasts 6 months. Brand B costs 50% more but lasts 18 months and has 5% lower friction (saving energy). The LCA will unequivocally show that Brand B, despite the higher initial cost, is the smarter choice for your dyeing machine spare part inventory.
5.2. Energy Consumption Audit of Dyeing Machine Spare Part
Since dyeing is an energy-intensive process (steam, electricity), auditing the energy impact of certain spare parts can yield massive savings.
5.2.1. Focusing on Pump Systems
The circulating pump consumes the most power. Regularly audit pump performance. If the pump efficiency drops (due to a worn impeller or bearing), replacing that specific dyeing machine spare part immediately saves energy. A 5% drop in pump efficiency on a 75kW motor running 24/7 is a substantial annual energy loss.
5.2.2. Insulation and Heat Loss
Check the insulation on the dyeing machine and related piping. Seals and gaskets also play a crucial role in preventing steam and heat loss. Replacing an old, compressed gasket that causes heat leakage is a critical, low-cost intervention that improves energy efficiency. Prioritizing robust sealing components is a smart investment in your dyeing machine spare part strategy.
5.3. Standardization of Dyeing Machine Spare Part Across the Fleet
Many factories operate machines from different manufacturers or different eras. Standardizing certain non-proprietary components simplifies management and reduces inventory costs.
5.3.1. Standardizing Common Components
Where possible, standardize universal parts across all machines, such as:
- Common Sensors: Use the same temperature sensor brand/model (e.g., PT100) across all vessels.
- Motor Brands: Consolidate motor brands and sizes to reduce the number of different bearings and drives needed.
- Pneumatic Components: Use a single brand for air regulators, solenoid valves, and cylinders. This standardization means fewer unique types of dyeing machine spare part must be stocked, reducing complexity and bulk purchasing savings.
5.3.2. Consolidating Procurement
By standardizing and centralizing procurement, you increase your buying power with key suppliers, securing better pricing, priority support, and shorter lead times for every dyeing machine spare part. This strategic consolidation turns procurement from a transaction into a long-term partnership.
6. VieTextile: Your Trusted Partner for Dyeing Machine Spare Part
Choosing the right partner is the final and most critical step in ensuring the long-term reliability of your dyeing operations. VieTextile is not just a supplier; we are a specialist partner committed to delivering precision and reliability in every dyeing machine spare part.
6.1. Specialization and Expertise in Textile Spares
VieTextile possesses deep, specialized knowledge of the textile industry, particularly in the dyeing and finishing sectors. We understand the harsh chemical and thermal environments in which every dyeing machine spare part operates. Our inventory is curated based on years of technical experience, focusing exclusively on components that meet or exceed the performance of OEM specifications. This specialization means you get expert advice, not just a catalog number.
6.2. Commitment to Certified Quality and Traceability
Quality is the foundation of our offering. Every dyeing machine spare part supplied by VieTextile comes with guaranteed material specifications. We prioritize SS316L for critical liquid-contact components and use only certified elastomers (Viton, EPDM) designed for high-heat, high-chemical resistance. This meticulous attention to material composition ensures maximum lifespan and prevents costly batch contamination or premature machine failure.
6.3. Supporting Both Modern and Legacy Dyeing Machine Models
VieTextile recognizes the value of older, reliable dyeing machines. We maintain an extensive inventory of hard-to-find and often obsolete dyeing machine spare part for legacy equipment from major global manufacturers. Furthermore, we leverage advanced manufacturing capabilities to reverse-engineer and produce high-precision replacements when originals are unavailable, ensuring your factory can maintain its workhorse machines indefinitely.
6.4. Rapid Response and Global Logistics for Dyeing Machine Spare Part
Downtime is the enemy of profitability. VieTextile’s logistics network is optimized for the textile industry’s urgent needs. We maintain strategic stock levels of A-class, mission-critical dyeing machine spare part to ensure rapid dispatch and minimize your machine’s time offline. Our commitment extends beyond simple delivery; we offer technical guidance on the proper installation and application of every component.
7. Frequently Asked Questions (FAQ) about Dyeing Machine Spare Part
This section addresses common queries regarding the maintenance and procurement of critical dyeing components, reinforcing the importance of quality in every dyeing machine spare part.
7.1. What Is the Most Common Cause of Failure in a Dyeing Machine Spare Part?
The most common cause of failure is corrosion and thermal degradation, often concentrated in seals, gaskets, and pump impellers. These failures usually result from using an incorrect material composition (e.g., using a cheaper O-ring not rated for the operating temperature) or poor water quality. Always select a dyeing machine spare part certified for chemical resistance.
7.2. How Often Should I Replace a Mechanical Seal on My Circulating Pump?
The replacement interval for a mechanical seal depends heavily on the machine’s operating hours and the quality of the specific dyeing machine spare part. Generally, seals should be inspected during every major preventative maintenance cycle (e.g., every 6,000 to 8,000 operating hours). Use predictive maintenance tools (vibration and temperature monitoring) to replace the seal just before its predicted failure point to maximize the lifespan of the dyeing machine spare part.
7.3. Is It Necessary to Stock a Spare PLC for Every Dyeing Machine?
Stocking a spare PLC for every machine can be costly. Instead, factories should identify the single most common PLC model used across the fleet and stock one or two of that primary unit, along with common I/O modules and power supplies. Criticality dictates stocking. If a machine breakdown due to a missing PLC would cost hundreds of thousands in lost production, then a spare is justified. A proactive inventory strategy for this high-value dyeing machine spare part is essential.
7.4. How Does Water Hardness Affect the Longevity of a Dyeing Machine Spare Part?
High water hardness can drastically reduce the lifespan of components, especially heat exchanger surfaces and certain seals. Hard water leads to scale buildup, which reduces thermal efficiency and can cause localized overheating, accelerating the failure of gaskets and metallic dyeing machine spare part. Regular descaling and water treatment are crucial preventative measures.
7.5. What Is the Ideal Material for a HTHP Dyeing Machine Valve Seat?
For High Temperature High Pressure (HTHP) dyeing machines, valve seats must withstand extreme thermal cycling and high pressures. The ideal material for the seat and stem of a critical control valve is typically high-grade SS316L combined with specialized sealing materials like reinforced PTFE or PEEK (Polyether ether ketone), which offer superior dimensional stability and chemical resistance compared to standard materials in a dyeing machine spare part application.
7.6. Can I Use a Generic Motor for My Dyeing Machine Pump?
While you can use a generic motor, it must precisely match the specifications of the original motor, including power rating (kW/HP), frame size, insulation class, IP rating (Ingress Protection), and most critically, the efficiency class (IE3 or IE4). Using an unrated or lower-efficiency motor as a dyeing machine spare part will lead to higher electricity consumption and potentially motor overheating under continuous load, undermining operational efficiency.
7.7. What Documentation Should I Request When Buying a New Dyeing Machine Spare Part?
You should always request:
- Material Test Report (MTR): Especially for SS316L components.
- Dimensional Certification: Verifying tolerances are met.
- Warranty Certificate: Providing coverage against premature failure.
- Installation Guide: Ensuring proper fitment and initial operation. This documentation confirms the quality and authenticity of the dyeing machine spare part.
7.8. How Can I Reduce the Inventory Cost of Dyeing Machine Spare Part Without Risking Downtime?
The best way is to partner with a reliable local supplier like VieTextile who can offer just-in-time delivery for B- and C-class items. By shifting the inventory burden to the supplier, you free up working capital. Focus your internal inventory strictly on A-class, long-lead-time, mission-critical dyeing machine spare part identified through rigorous failure mode and criticality analysis (FMEA).
7.9. How Does Wear on the Impeller Affect the Dyeing Process?
Wear (erosion or corrosion) on the pump impeller significantly reduces the liquor circulation rate and flow uniformity within the dyeing vessel. This decreased flow directly results in a lower heating/cooling rate and, more critically, leads to poor color leveling and uneven dye penetration, resulting in inconsistent batches and costly re-dyes. Replacing a worn impeller with a precision-balanced dyeing machine spare part is crucial for maintaining fabric quality.
7.10. What Are the Long-Term Benefits of Investing in High-Quality Seals and Gaskets?
Investing in high-quality seals and gaskets for your dyeing machine spare part inventory offers multiple benefits: they minimize steam and liquor leaks, which directly translates to lower energy (steam) consumption and reduced water/chemical usage. They also prevent catastrophic failures that cause machine damage and eliminate the risk of product contamination, ensuring consistent batch quality and minimizing the Total Cost of Ownership.
