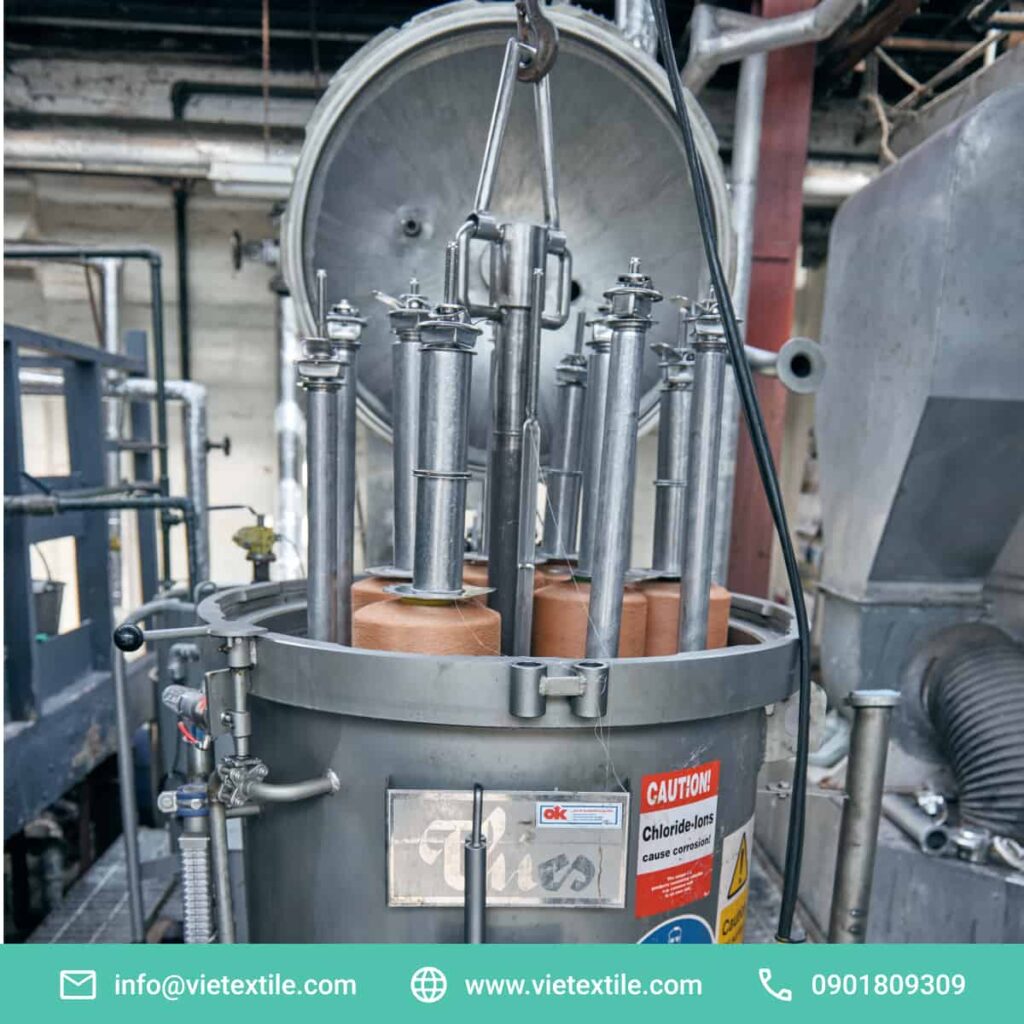

In the yarn dyeing process, steam is the dominant energy source, determining the heating rate, temperature stability, and consequently, the uniformity of the dye color. The steam valve for the yarn dyeing machine plays a crucial role in controlling the flow and pressure of the steam. However, selecting a valve that deviates from the required pressure rating (Pressure Nominal – PN) and working temperature not only leads to a decline in heating efficiency but also poses a serious risk of operational safety hazards.
This in-depth analysis will focus on the most important technical criteria: Working Pressure and Design Pressure. We will delve into various types of steam valves for yarn dyeing machines, provide guidance on calculation methods, and material selection, helping engineers and operation managers make accurate and sustainable investment decisions.
1. The Importance of Pressure in Steam Valve Selection
Working Pressure is the fundamental factor that determines the mechanical strength and lifespan of the steam valve for the yarn dyeing machine. Errors in determining the PN rating can lead to leakage, material deformation, or even catastrophic valve failure.
1.1. Concepts of Design Pressure (PN/Class)
- Pressure Nominal (PN): This is the European standard pressure designation (EN/ISO). Examples: PN16, PN25, PN40 correspond to a maximum pressure of 16 Bar, 25 Bar, and 40 Bar that the valve can withstand at ambient temperature.
- ASME Class (Class): This is the US standard pressure designation (ANSI/ASME). Examples: Class 150, Class 300. The relationship between Class and Bar is more complex than PN because it depends on temperature (Pressure-Temperature Rating).
The selection of the steam valves for the yarn dyeing machine should be based on the Design Pressure of the entire steam system (typically 1.5 to 2 times higher than the Working Pressure to ensure safety).
1.2. The Effect of Temperature on Pressure Rating
Most metallic materials (Cast Iron, Carbon Steel, Stainless Steel) experience a reduction in their pressure-bearing capacity as temperature increases.
- P-T Curve: Manufacturers of steam valves for yarn dyeing machine always provide a Pressure-Temperature Rating (P-T Curve) chart. For example, a PN25 valve may withstand 25 Bar at but only 18 Bar at 220∘C (typical saturated steam temperature).
Golden Rule: Always choose a steam valves for the yarn dyeing machine with a PN/Class greater than the actual Working Pressure at the maximum operating temperature.
2. Common Steam Valves for Yarn Dyeing Machine by Function
Yarn dyeing machines primarily use two types of steam valves: Isolation (shut-off) and Control.
2.1. Isolation Valves
These are used to isolate a part of the system for maintenance or shutdown. These valves typically operate in a fully open or fully closed state.
- Gate Valve:
- Characteristics: Straight flow path, very low Pressure Drop when fully open.
- Application: Often used for Main Steam Lines requiring high PN. Gate valves have high durability but are not suitable for Throttling (flow regulation).
- Globe Valve:
- Characteristics: Design includes a baffle, forcing the flow to change direction, resulting in a higher Pressure Drop than Gate Valves.
- Application: Globe valves offer better flow regulation capabilities than Gate Valves and are often used before Control Valves as shut-off valves.
2.2. Control Valves
These are used to regulate steam flow, thereby controlling the temperature and pressure inside the dyeing vessel.

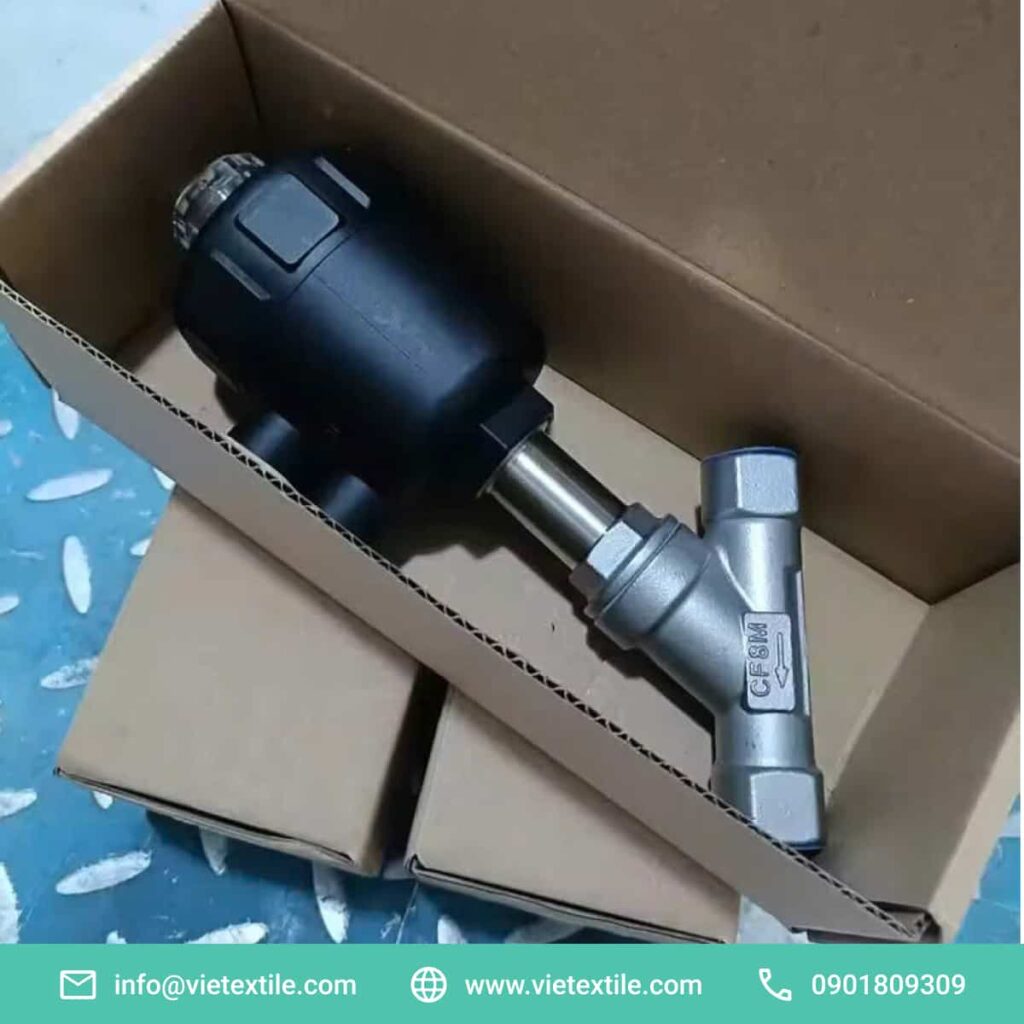

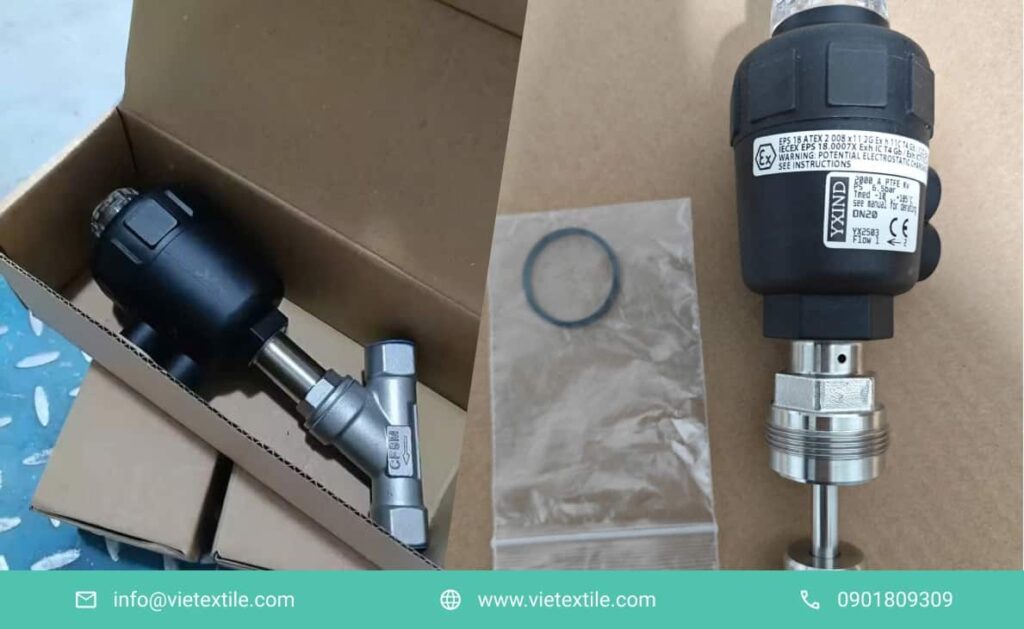

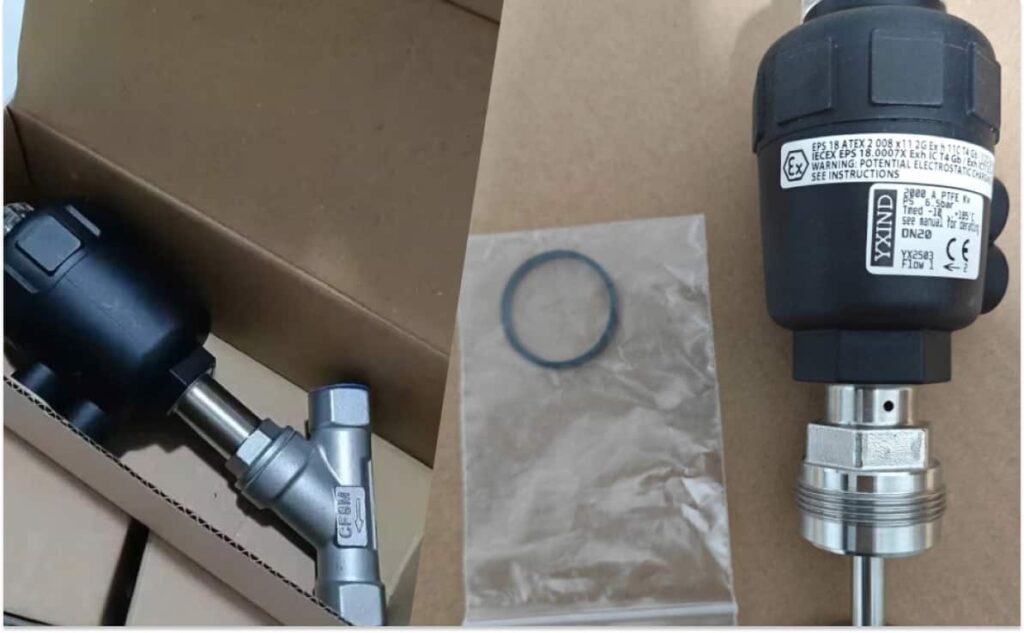

- Pneumatic Control Valve:
- Characteristics: Globe valve or Globe valve with specialized port, controlled by a Pneumatic Actuator based on a PID signal from the controller.
- Importance: This is the most crucial steam valves for the yarn dyeing machine, and it must be selected with the precise PN rating to prevent leakage during Throttling.
- Pressure Reducing Valve (PRV):
- Characteristics: Automatically maintains stable outlet pressure, regardless of changes in inlet pressure.
- Application: Essential for steam branches requiring lower pressure (e.g., PRV reducing 10 Bar to 4 Bar for auxiliary heating areas).
3. Material Selection Based on Pressure and Corrosion
The material used to manufacture the steam valve for the yarn dyeing machine must withstand pressure, temperature, and potential corrosive agents.
3.1. Valve Body Material
- Ductile Iron (GGG40): Commonly used for PN16 or PN25 valves with standard saturated steam temperatures. Low cost, relatively good mechanical strength.
- Carbon Steel (A216 WCB): A popular choice for PN40 (Class 300) systems and higher temperatures. Offers superior heat and pressure resistance compared to Cast Iron.
- Stainless Steel (SS304/316): Used for highly corrosive steam environments (e.g., steam contaminated with chemicals from the dyeing process or impure feedwater). SS316 is preferred for its absolute corrosion resistance.
3.2. Trim & Sealing Material
- Trim (Valve Disc, Stem): Often made of SS316 or Hard Facing (such as Stellite) to resist Erosion from high-velocity steam and friction during opening and closing.
- Sealing (Packing/Gaskets): Must withstand high temperature and pressure. Common materials are PTFE for temperatures below 200∘C and Graphite for temperatures above 250∘C. Graphite packing is considered the standard for high-pressure steam valves for yarn dyeing machine.
4. Technical Analysis for Control Valve Selection
Selecting a control steam valves for the yarn dyeing machine is more complex than selecting an isolation valve, requiring the calculation of the Flow Coefficient (Cv) and Rangeability.
4.1. Calculating the Flow Coefficient (Cv)
Cv is the standard flow rate parameter (Gallons/Minute) that the valve can pass at a 1 PSI pressure drop. The Cv calculation must be based on:
- Maximum Steam Flow Rate (Mass Flow Rate): Determined by the dyeing vessel’s heating requirement (BTU/hr).
- Inlet Pressure (P1) and Outlet Pressure (P2): Steam pressure before and after the valve.
- Pressure Drop (ΔP=P1−P2): Must be within the valve’s recommended range.
Incorrect Cv Selection:
- Cv Too Large (Oversized): The steam valves for the yarn dyeing machine must operate in a nearly closed position (Under-sized Opening) for regulation, leading to inaccurate Throttling and rapid erosion (Wire Drawing).
- Cv Too Small (Undersized): The valve always operates in a Fully Open state, failing to meet the required flow rate, leading to slow heating times.

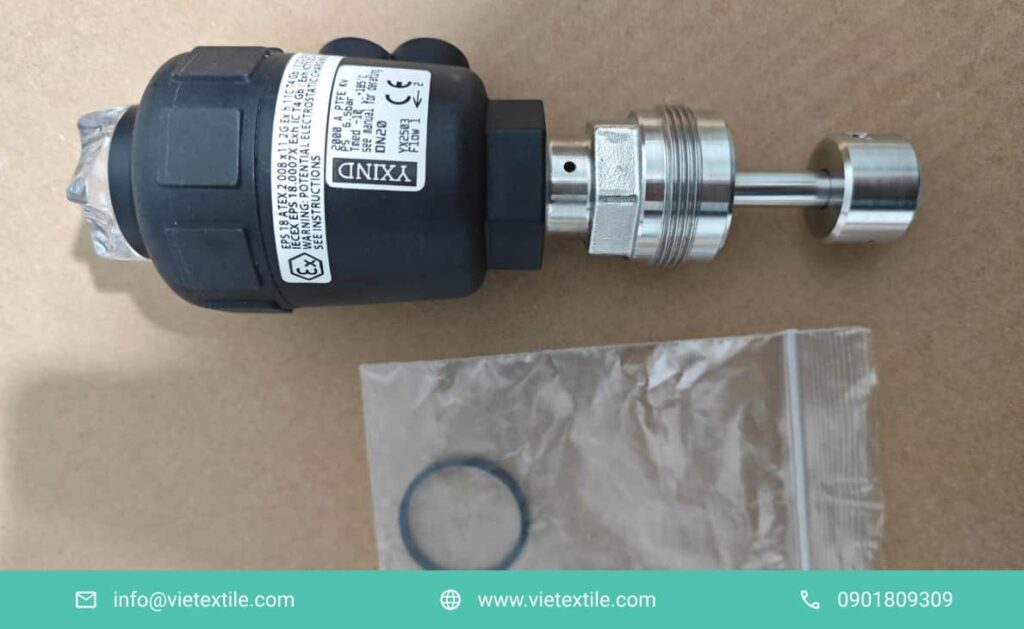

4.2. Actuator Size and Air Supply
- Actuator (Pneumatic Actuator): Must provide sufficient force (Thrust) to close the steam valves for the yarn dyeing machine at maximum differential pressure (ΔPmax). This force needs to be carefully calculated, especially when the valve needs to close against the steam pressure (Fail-to-Close/Open).
- Air Supply: Pneumatic Control Valves require a dry and clean air source. A high-quality Air Filter Regulator (AFR) is an essential spare part for the dyeing machine to protect the Actuator and Positioner.
5. Common Faults Due to Incorrect Steam Valve Pressure Selection
Choosing the wrong steam valves for the yarn dyeing machine is the root cause of many operational issues and increased maintenance costs.
5.1. Leakage Through Valve Body
Cause: Working pressure exceeds the design PN of the valve body. This is common in Ductile Iron valves operated beyond the PN16 limit. Consequence: Steam escaping, wasting energy, creating a humid environment, and posing an accident risk to workers.
5.2. Seat/Disc Failure
Cause: Erosion due to an oversized Cv of the steam valves for the yarn dyeing machine → the valve operates near the closed position → high-velocity steam (Flashing) cuts into the metal surface (Wire Drawing). Consequence: The valve cannot close completely (Leakage Through Seat), causing steam leakage into the dyeing vessel when the valve is supposed to be closed, leading to uncontrolled standby temperatures.
5.3. Gasket Failure
Cause: Temperature and working pressure exceed the limits of the Gasket material (typically PTFE used above 200∘C). Consequence: Steam leakage through the Flange or between the Body and the Bonnet.
6. Long-Term Investment Strategy for Steam Valves for Yarn Dyeing Machine
The investment strategy for steam valves for yarn dyeing machine needs to focus on the Total Cost of Ownership (TCO) rather than just the initial purchase price.
6.1. Standardization by Application
Classify steam valves for yarn dyeing machine into two main groups:
- High-Pressure/High-Temperature Group: PN40 (Class 300) or higher, Carbon Steel or SS316 material. Used for the main steam line.
- Low-Pressure/Control Group: PN25 (Class 150), Ductile Iron or Carbon Steel material. Used for steam branches feeding the dyeing vessel.
Standardization helps minimize the number of spare part Part Numbers in inventory.
6.2. Preventive Maintenance
- Quarterly Leak Check: Use an Ultrasonic Leak Detector to find internal steam valves for yarn dyeing machine leaks (Seat Leakage) that are not visible to the naked eye.
- Scheduled Replacement: Replace Gaskets and Packing of the steam valves for the yarn dyeing machine according to the maintenance schedule, without waiting for leakage to occur.
6.3. Selecting Professional Suppliers
Reputable suppliers of steam valves for yarn dyeing machine do not just sell products; they also provide accurate sizing services (Cv calculation and Actuator sizing), ensuring the valve operates optimally under the mill’s actual pressure and temperature conditions.
7. Conclusion: Safety and Efficiency Through Correct Selection
Selecting the appropriate steam valves for the yarn dyeing machine based on working pressure is a critical technical decision, directly affecting operational safety, equipment lifespan, and energy efficiency. Understanding the PN/Class ratings, P-T Rating compatible materials, and accurately calculating Cv are the foundations for building a stable steam system, ensuring the yarn dyeing process achieves the highest quality.
VieTextile is a unit specializing in providing genuine steam valve solutions for yarn dyeing machines, from isolation valves to specialized Control Valves for the textile industry. We are committed to providing the most in-depth technical consulting to help your business select the appropriate valve, optimize operating costs, and enhance safety standards.
8. Frequently Asked Questions (FAQ) about Steam Valves for Yarn Dyeing Machine
Q1: Should I choose a Ball Valve or a Gate Valve as the main steam shut-off valve? A1: In high-pressure steam systems, a Globe Valve is often preferred over a Ball Valve for Isolation or a Gate Valve for absolute shut-off. Ball Valves are not recommended because the PTFE seals are easily damaged by Superheated Steam and generate high Torque when opening/closing at high pressures.
Q2: What is the Test Pressure of a steam valves for a yarn dyeing machine? A2: The Test Pressure is the hydraulic pressure used by the manufacturer to check the body’s strength and the Seat/Seal’s tightness. This pressure is always higher than the design PN (e.g., 1.5 times PN) and should not be confused with the maximum Working Pressure (PN).
Q3: Does the Cv of the steam valves for a yarn dyeing machine change when the steam temperature changes? A3: Cv (Flow Coefficient) is a mechanical constant of the valve (based on shape and Port size). However, because steam is a compressible fluid, the actual Mass Flow through the valve will change with temperature and pressure. Therefore, engineers must use a more complex Cv formula (for gas/steam) to calculate the required flow rate.
